HOWO ENGINE

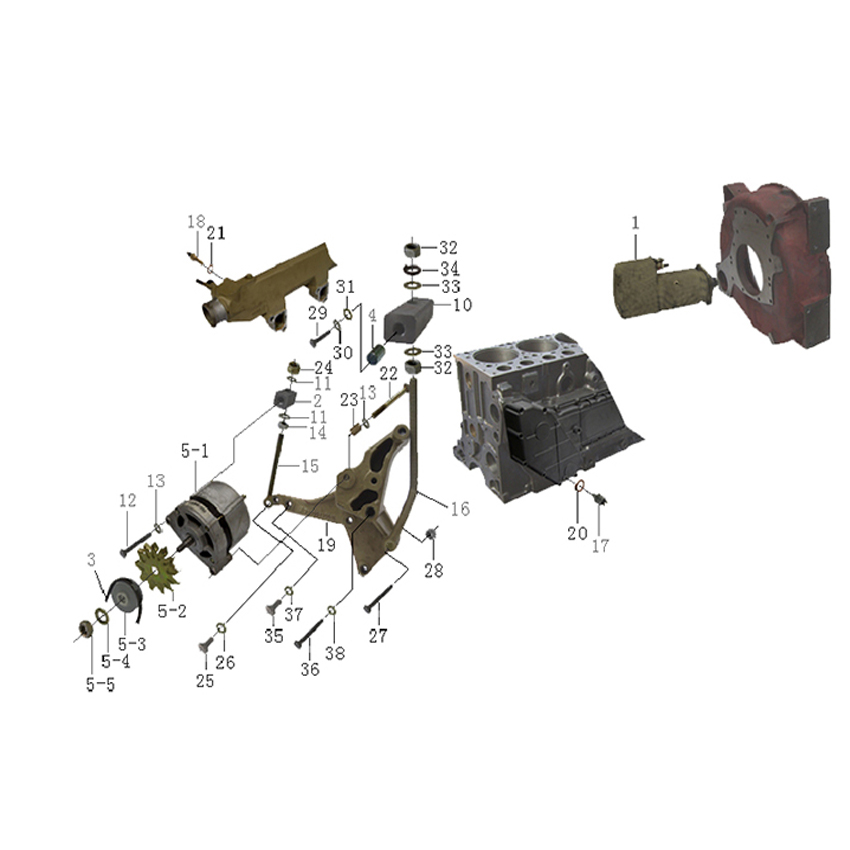

  • ELECTRICAL SYSTEM
    ELECTRICAL SYSTEM

    2016-09-27

    NO. Part no Part Name Chinese name 1 VG1246090003 起动机 Starter motor 2 Q150B1035 六角头螺栓 Hex head bolt 3 Q40310 弹簧垫圈 Spring washer 4 Q40110 平垫圈 Washer 5 VG1246090005 发电机 Alternator 6 VG1246090006 轴套 Bush 7 VG1246090007 隔套 Positioning nut 8 VG1246090027 双头螺栓 Bolt 9 Q150B10110 六角头螺栓 Hex head bolt 10 VG1246090008 发电机支架 Bracket 11 VG1246090009 定位套 Positioning bush 12 Q150B1075 六角头螺栓 Hex head bolt 13 Q150...

    read more

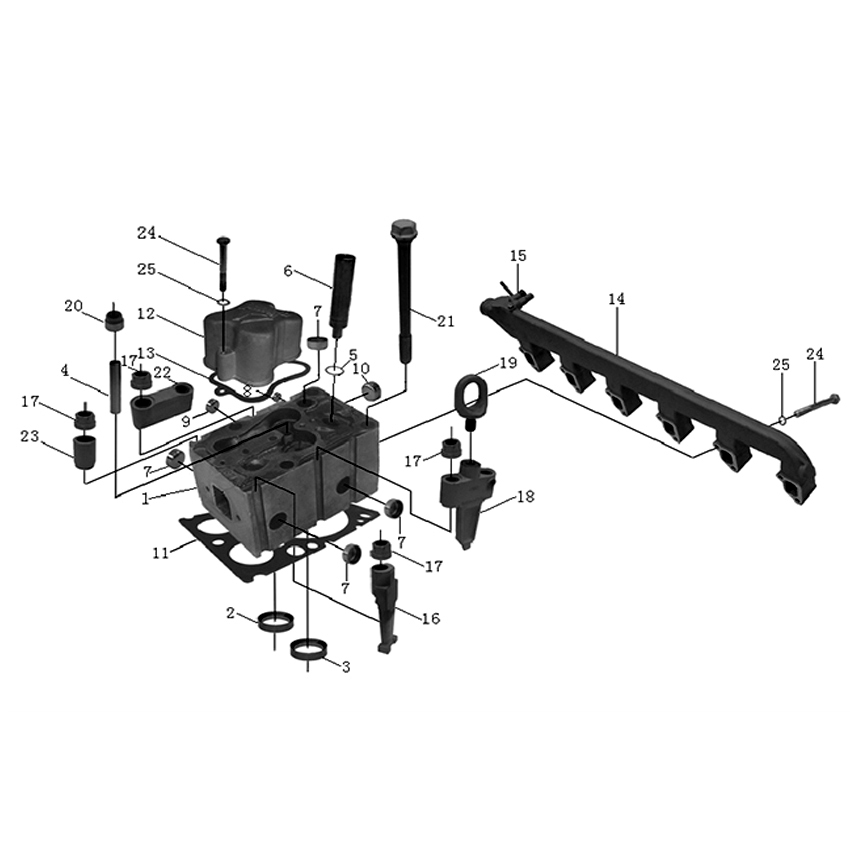

  • CYLINDER HEAD
    CYLINDER HEAD

    2016-09-27

    NO. Part no Part Name Chinese name - AZ1246040010 Cylinder head assembly 气缸盖总成 1 AZ1246040011 Cylinder head 气缸盖 2 VG1246040012 Intake valve support 进气门座 3 VG1246040013 Exhaust valve support 排气门座 4 VG1246040014 Valve guide 气门导管 5 VG1246040015 Valve push rod bush 气门推杆衬套 6 VG1246040016 Fuel injector bush 喷油器衬套 7 190003989725 Core hole plug 碗形塞 8 VG1246040031 Core hole plug 碗形塞 9 VG1246040018 Sealing ...

    read more

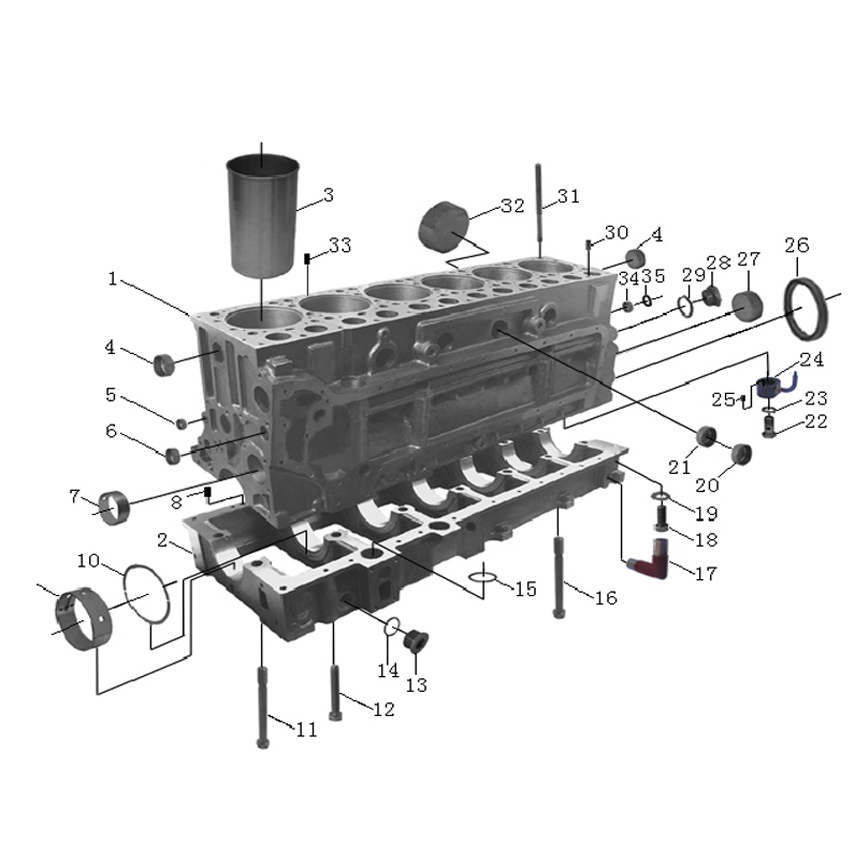

  • CYLINDER BLOCK
    CYLINDER BLOCK

    2016-09-27

    NO. Part no Part Name Chinese name - AZ1246010049 Cylinder block assembly 气缸体总成 1 AZ1246010040 Cylinder block 气缸体 2 AZ1246010029 Crankcase 曲轴箱 3 VG1246010042 Camshaft bush 凸轮轴衬套 4 VG1246010043 Camshaft bush 凸轮轴衬套 5 190003989289 Core hole plug 碗形塞 6 VG1246010044 Core hole plug 碗形塞 7 VG1246010041 Core hole plug 碗形塞 8 VG1246010046 Core hole plug 碗形塞 9 VG1246010048 Core hole plug 碗形塞 10 VG1246010032 P...

    read more

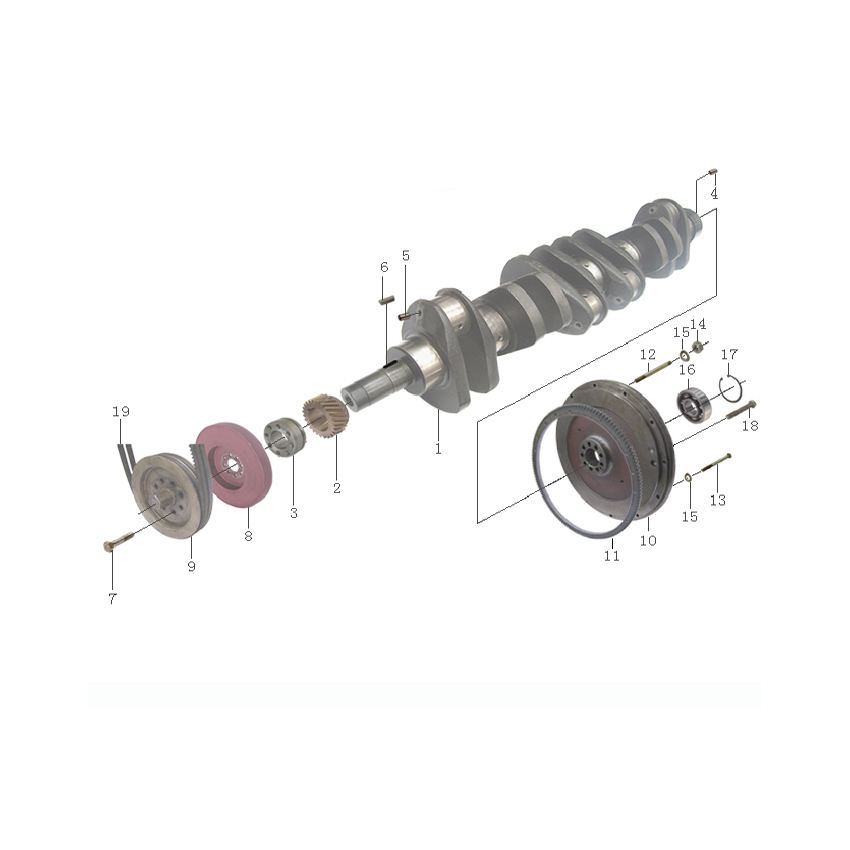

  • CRANKSHAFT FLYWHEEL
    CRANKSHAFT FLYWHEEL

    2016-09-27

    NO. Part NO Part Name Chinese Name 1 AZ1246020013 Crankshaft 曲轴 2 VG1246020012 Front crankshaft gear 曲轴前齿轮 3 VG1246020011 Rear crankshaft gear 曲轴后齿轮 4 Q5210816 Dowel pin 圆柱销 5 AZ1246020025A Flywheel 飞轮 6 Q43062 Circlip 孔用弹性挡圈 7 190003311416 Ball bearing 球轴承 8 VG2600020208 Ring gear 飞轮齿圈 9 Q1201090F3 Stud 双头螺柱 10 Q340B10 Hexagon nut 六角螺母 11 Q150B1085 Hex head bolt 六角头螺栓 12 Q41810 Spring washer 波形弹性...

    read more
  • CRANKSHAFT FLYWHEEL
    CRANKSHAFT FLYWHEEL

    2016-09-27

       NO. Part NO Part Name Chinese Name 1 AZ1246020013 Crankshaft 曲轴 2 VG1246020012 Front crankshaft gear 曲轴前齿轮 3 VG1246020011 Rear crankshaft gear 曲轴后齿轮 4 Q5210816 Dowel pin 圆柱销 5 AZ1246020025A Flywheel 飞轮 6 Q43062 Circlip 孔用弹性挡圈 7 190003311416 Ball bearing 球轴承 8 VG2600020208 Ring gear 飞轮齿圈 9 Q1201090F3 Stud 双头螺柱 10 Q340B10 Hexagon nut 六角螺母 11 Q150B1085 Hex head bolt 六角头螺栓 12 Q41810 Sprin...

    read more
  • CYLINDER BLOCK
    CYLINDER BLOCK

    2016-09-27

       NO. Part no Part name Chinese name - AZ1246010049  Cylinder block assembly 气缸体总成 1 AZ1246010040 Cylinder block 气缸体 2 AZ1246010029 Crankcase 曲轴箱 3 VG1246010042 Camshaft bush 凸轮轴衬套 4 VG1246010043 Camshaft bush 凸轮轴衬套 5 190003989289 Core hole plug 碗形塞 6 VG1246010044 Core hole plug 碗形塞 7 VG1246010041 Core hole plug 碗形塞 8 VG1246010046 Core hole plug 碗形塞 9 VG1246010048 Core hole plug 碗形...

    read more
  • CYLINDER HEAD
    CYLINDER HEAD

    2016-09-27

       NO. Part no Part Name Chinese name - AZ1246040010 Cylinder head assembly 气缸盖总成 1 AZ1246040011 Cylinder head 气缸盖 2 VG1246040012 Intake valve support 进气门座 3 VG1246040013 Exhaust valve support 排气门座 4 VG1246040014 Valve guide 气门导管 5 VG1246040015 Valve push rod bush 气门推杆衬套 6 VG1246040016 Fuel injector bush 喷油器衬套 7 190003989725 Core hole plug 碗形塞 8 VG1246040031 Core hole plug 碗形塞 9 VG124604...

    read more
  • ELECTRICAL SYSTEM
    ELECTRICAL SYSTEM

    2016-09-27

       NO. Part no Part name Chinese name 1 VG1246090003 起动机 Starter motor 2 Q150B1035 六角头螺栓 Hex head bolt 3 Q40310 弹簧垫圈 Spring washer 4 Q40110 平垫圈 Washer 5 VG1246090005 发电机 Alternator 6 VG1246090006 轴套 Bush 7 VG1246090007 隔套 Positioning nut 8 VG1246090027 双头螺栓 Bolt 9 Q150B10110 六角头螺栓 Hex head bolt 10 VG1246090008 发电机支架 Bracket 11 VG1246090009 定位套 Positioning bush 12 Q150B1075 六角头螺栓 Hex head...

    read more

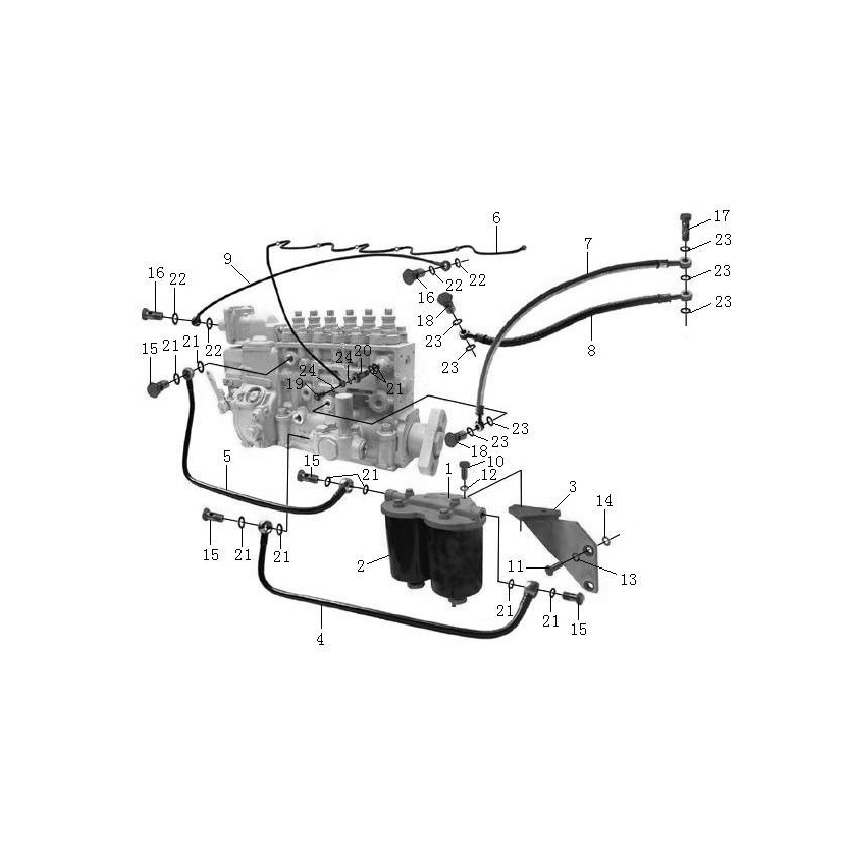

  • FUEL SYSTEM
    FUEL SYSTEM

    2016-09-27

       NO. Part NO Part Name Chinese Name 1 VG1246080050 Fuel injection pump 喷油泵总成 2 VG1246080028 O-ring O型密封圈 3 R61540080312 Woodruff key 半圆键 4 VG1246080056 Flange 油泵安装法兰 5 VG1246080027 O-ring O型密封圈 6 Q150B1035TF2 Hex head bolt 六角头螺栓 7 Q40110 Washer 平垫圈 8 VG1246080029 Fuel injection pump gear 油泵驱动齿轮 9 VG1246130010 Hexagon nut 六角螺母 10 Q150B1045TF2 Hex head bolt 六角头螺栓 11 Q150B1035TF2 Hex head...

    read more

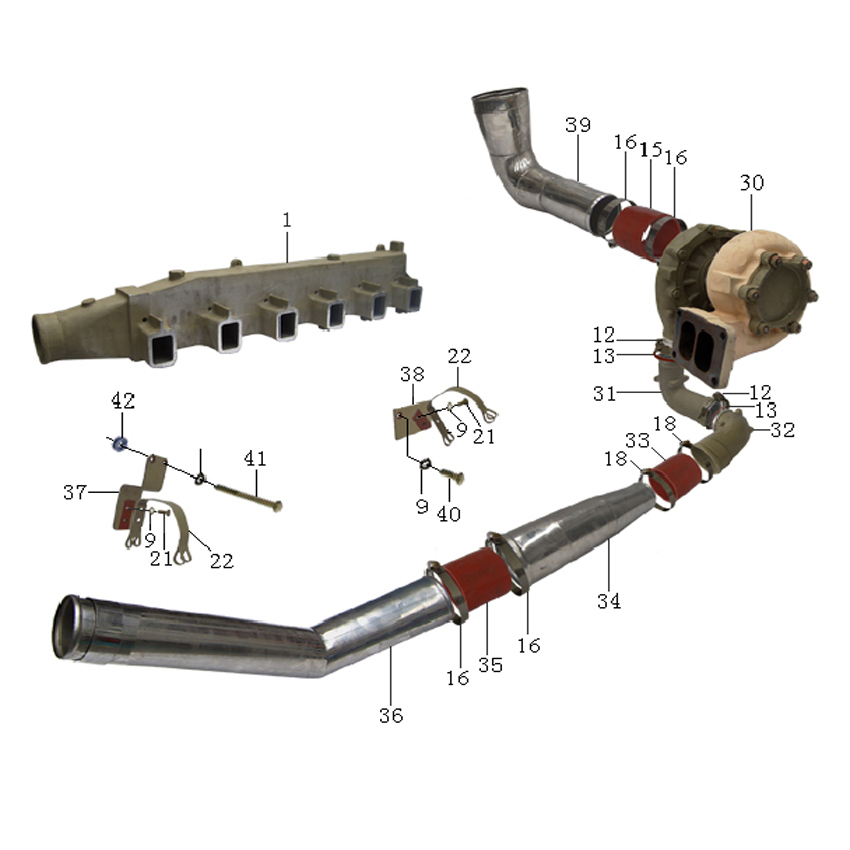

  • INTAKE MANIFOLD AND EXHAUST MANIFOLD
    INTAKE MANIFOLD AND EXHAUST MANIFOLD

    2016-09-27

       NO. Part no Part Name Chinese name 1 VG1246110002 进气管 Intake manifold 2 190003989286 碗形塞 Core hole plug 3 VG1246110006 进气管垫片 Gasket 4 Q150B08125 六角头螺栓 Hex head bolt 5 Q150B08115 六角头螺栓 Hex head bolt 6 Q150B08110 六角头螺栓 Hex head bolt 7 Q41808 波形弹簧垫圈 Spring washer 8 VG1246110044 共轨支架总成 Bracket 9 VG1540110011A 进气管盖板 Intake manifold cover 10 VG1540110018A 进气管盖板垫片 Gasket 11 Q150B0620 六角头螺栓 H...

    read more

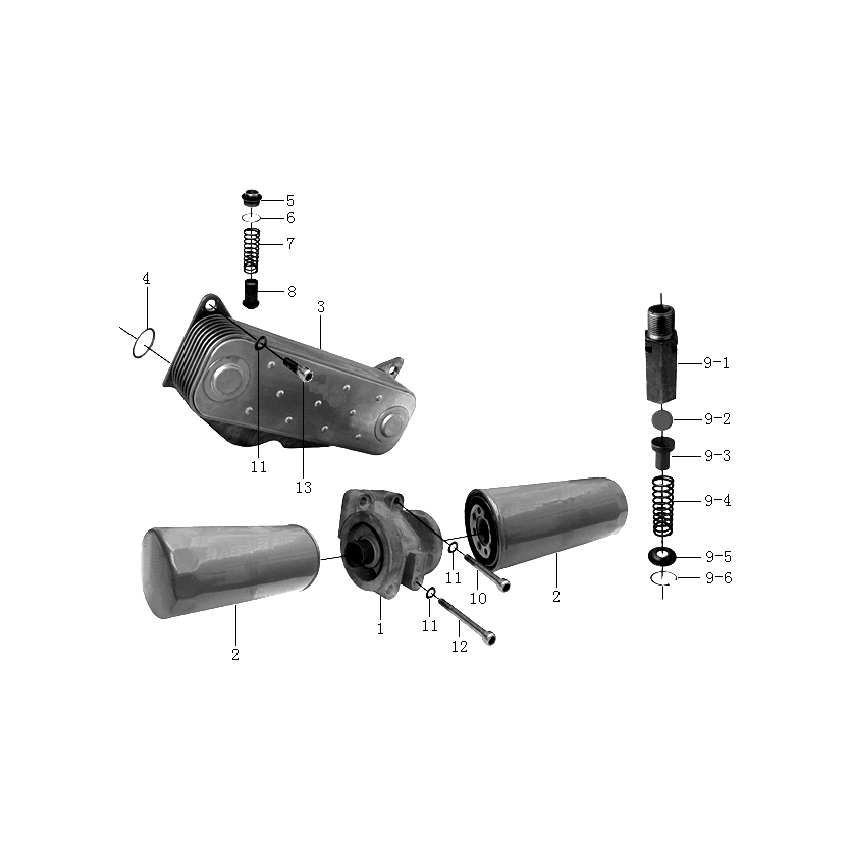

  • LUBRICATING OIL PUMP AND OIL FILTER
    LUBRICATING OIL PUMP AND OIL FILTER

    2016-09-27

       NO. Part no Part Name Chinese name 1 VG1246070002 机油滤清器芯 Oil filter 2 VG1246070003 机油滤清器座 Oil filter body 3 Q1840860 六角法兰面螺栓 Hex head bolt 4 VG1246070012 机油冷却器芯 Oil cooler 5 VG1400010032 密封圈 Sealing ring 6 Q150B0816 六角头螺栓 Hex head bolt 7 Q41808 波形弹簧垫圈 Spring washer 8 VG1246070014 集滤器总成 Oil strainer assembly 9 VG140778 垫片 Gasket 10 Q150B1025 六角头螺栓 Hex head bolt 11 Q41810 波形弹簧垫圈 Spring ...

    read more

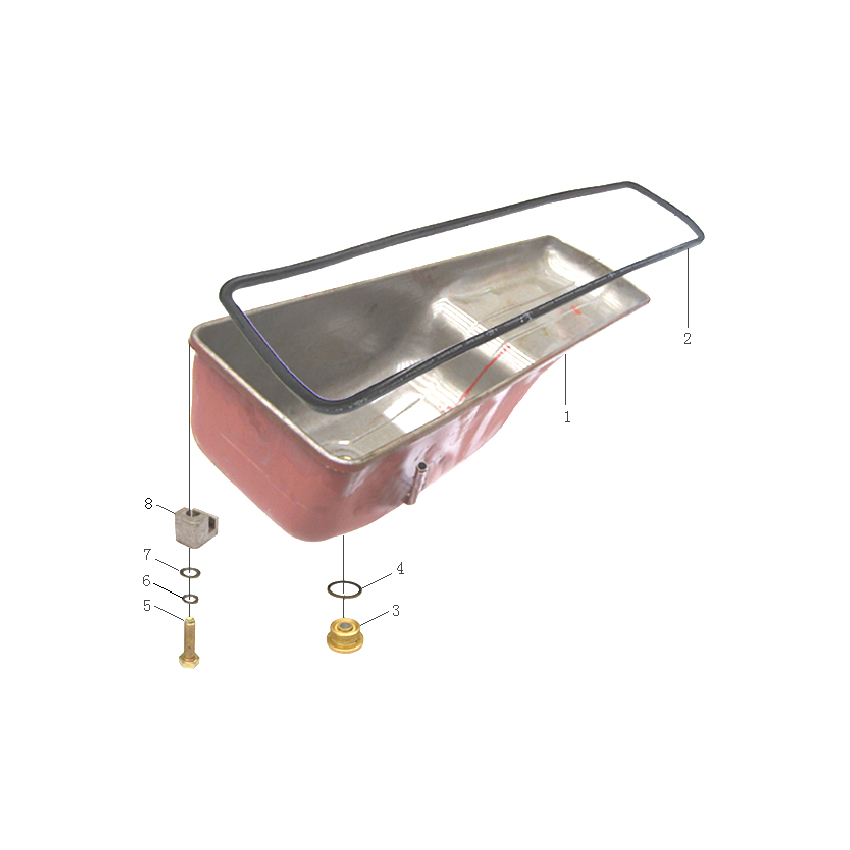

  • OIL PAN
    OIL PAN

    2016-09-27

       NO. Part NO Part Name Chinese Name 1 VG1246150010 油底壳总成 Oil pan assembly 2 VG2600150108 磁性螺塞总成 Plug 3 VG2600150106 密封垫圈 Sealing washer 4 VG1246150016 油底壳密封垫 Seal 5 VG14150046 油底壳托块 Holding piece 6 Q150B0840 六角头螺栓 Bolt 7 Q40108 平垫圈 Washer 8 Q40308 弹簧垫圈 Spring washer

    read more

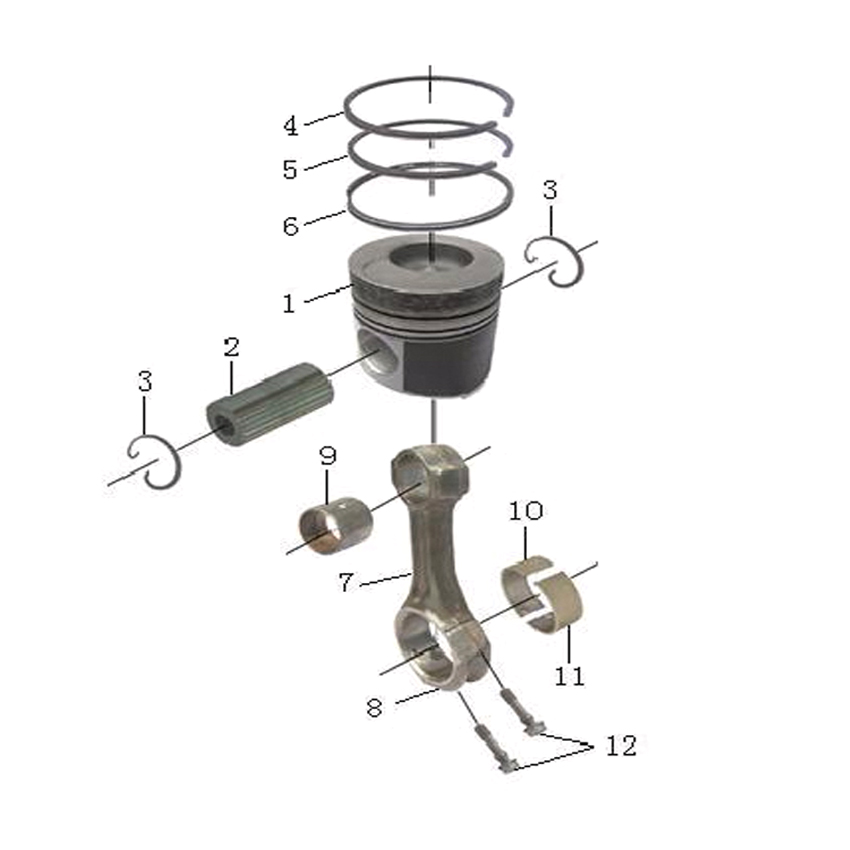

  • PISTON AND CONNECTING ROD
    PISTON AND CONNECTING ROD

    2016-09-27

       NO. Part NO Part Name Chinese Name 1 VG1246030001 活塞 Piston 2 VG1246030002 活塞销 Piston pin 3 VG1246030003 活塞销挡圈 Retaining ring 4 VG1246030004 梯形环 Double ladder ring 5 VG1246030005 锥面环 Conical ring 6 VG1246030006 螺旋撑簧油环 Spiral spring oil ring 7 AZ1246030008 连杆体 Connecting rod 8 AZ1246030009 连杆盖 Connecting rod cover 9 VG1246030010 连杆衬套 Connecting rod bush 10 VG1246030013 连杆螺栓 Connecting ...

    read more

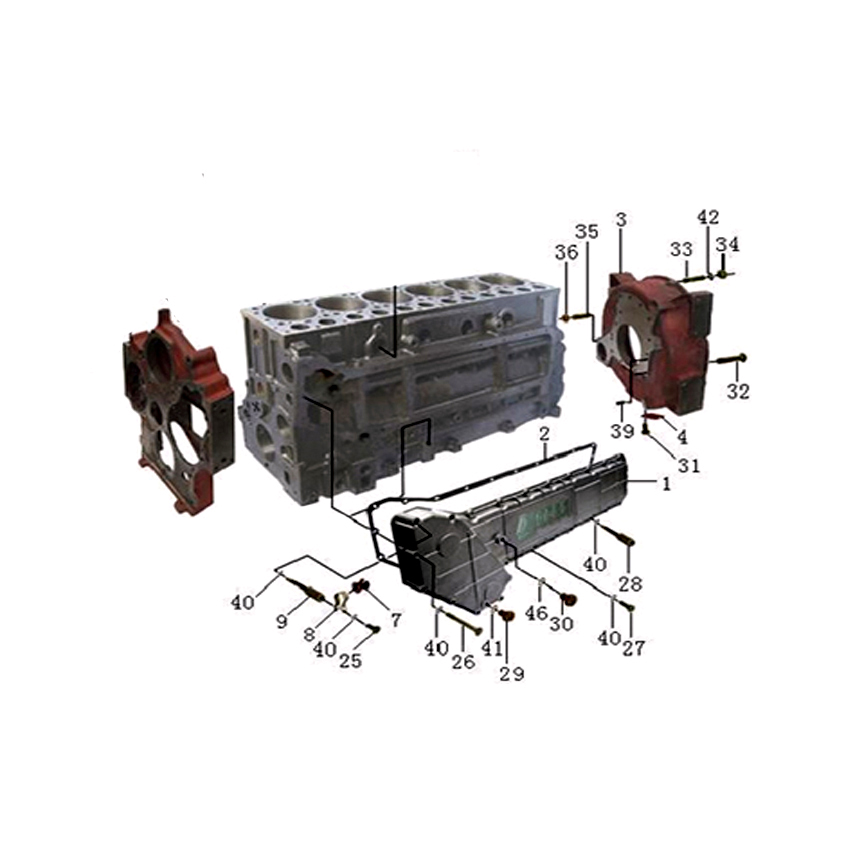

  • PTO
    PTO

    2016-09-27

       NO. Part NO Part Name Chinese Name 1 AZ1246010020 飞轮壳 Flywheel housing 2 Q150B1250TF2 六角头螺栓 Hex head bolt 3 VG1246010060 取力器总成 PTO assembly 4 VG1246010016 O型密封圈 O-ring 5 Q150B1260 六角头螺栓 Hex head bolt 6 Q41812 波形弹性垫圈 Spring washer 7 VG1246010070 后取力机油进油管总成 PTO oil pipe assembly 8 VG1246010071 空心螺栓 Hollow bolt 9 VG1246010072 空心螺栓 Hollow bolt 10 VG9003080003 复合密封垫圈 Sealing washer 11 Q150...

    read more

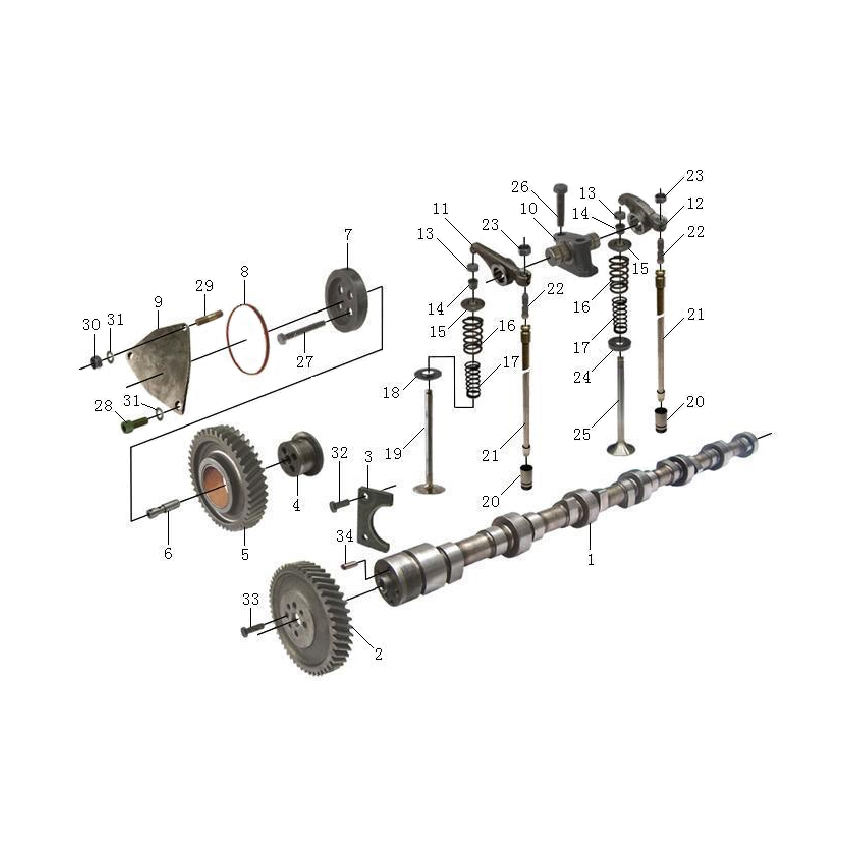

  • VALVE-GEAR MECHANISM
    VALVE-GEAR MECHANISM

    2016-09-27

       NO. Part NO Part Name Chinese Name 1 VG1246050038 凸轮轴 Camshaft 2 VG1246050039 凸轮轴止推片 Thrust flange 3 Q150B0820TF2 六角头螺栓 Hex head bolt 4 VG1246050029 气门挺柱 Valve tappet 5 VG1246050020 气门推杆 Valve push rod 6 VG1246050005 摇臂座 Rocker arm support 7 Q5210406 圆柱销 Dowel pin 8 VG1246050006 摇臂轴总成 Rocker arm shaft assembly 9 VG1246050050 EVB排气门桥组件 EVB exhaust valve bridge assembly 10 VG1246050055 ...

    read more

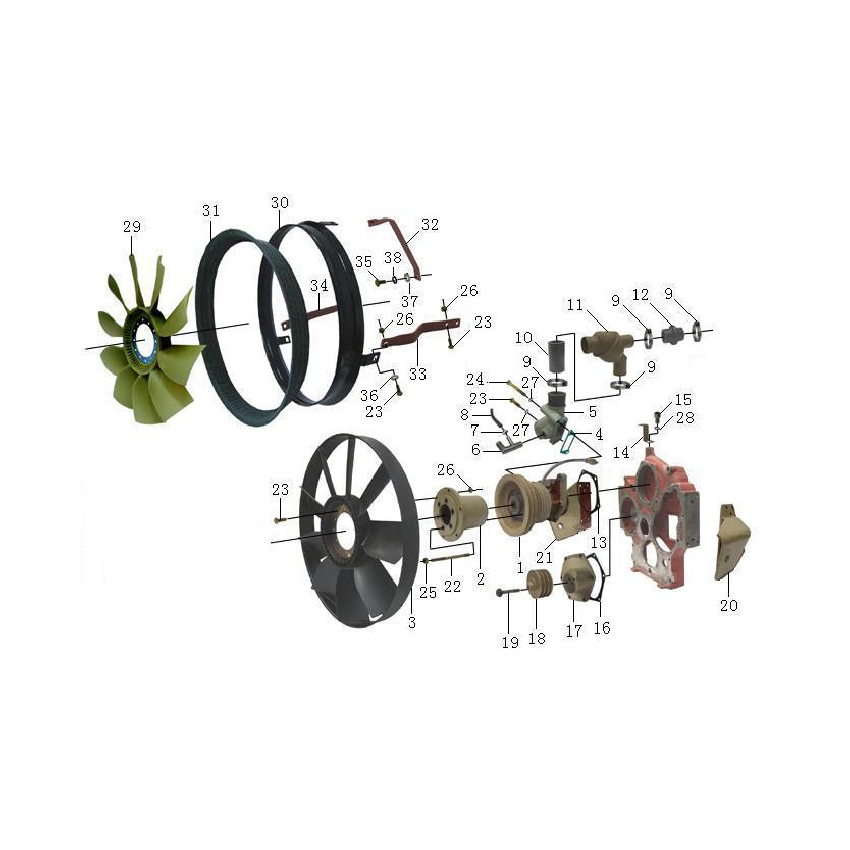

  • WATER PUMP AND COOLING SYSTEM
    WATER PUMP AND COOLING SYSTEM

    2016-09-27

       NO. Part NO Part Name Chinese Name 1 VG1246060001 自动张紧轮总成 Automatic tensioning roller assembly 2 Q150B1065TF2 六角头螺栓 Hex head bolt 3 VG1246060004 平惰轮 Idle pulley 4 VG1246060008 多楔带 Poly V belt 5 VG1246060002 自动张紧轮总成 Automatic tensioning roller assembly 6 Q150B1065TF2 六角头螺栓 Hex head bolt 7 VG1246060047 平惰轮 Idle pulley 8 VG1246060082 多楔带 Poly V belt 9 VG1246060070 风扇托架总成 Fan support asse...

    read more

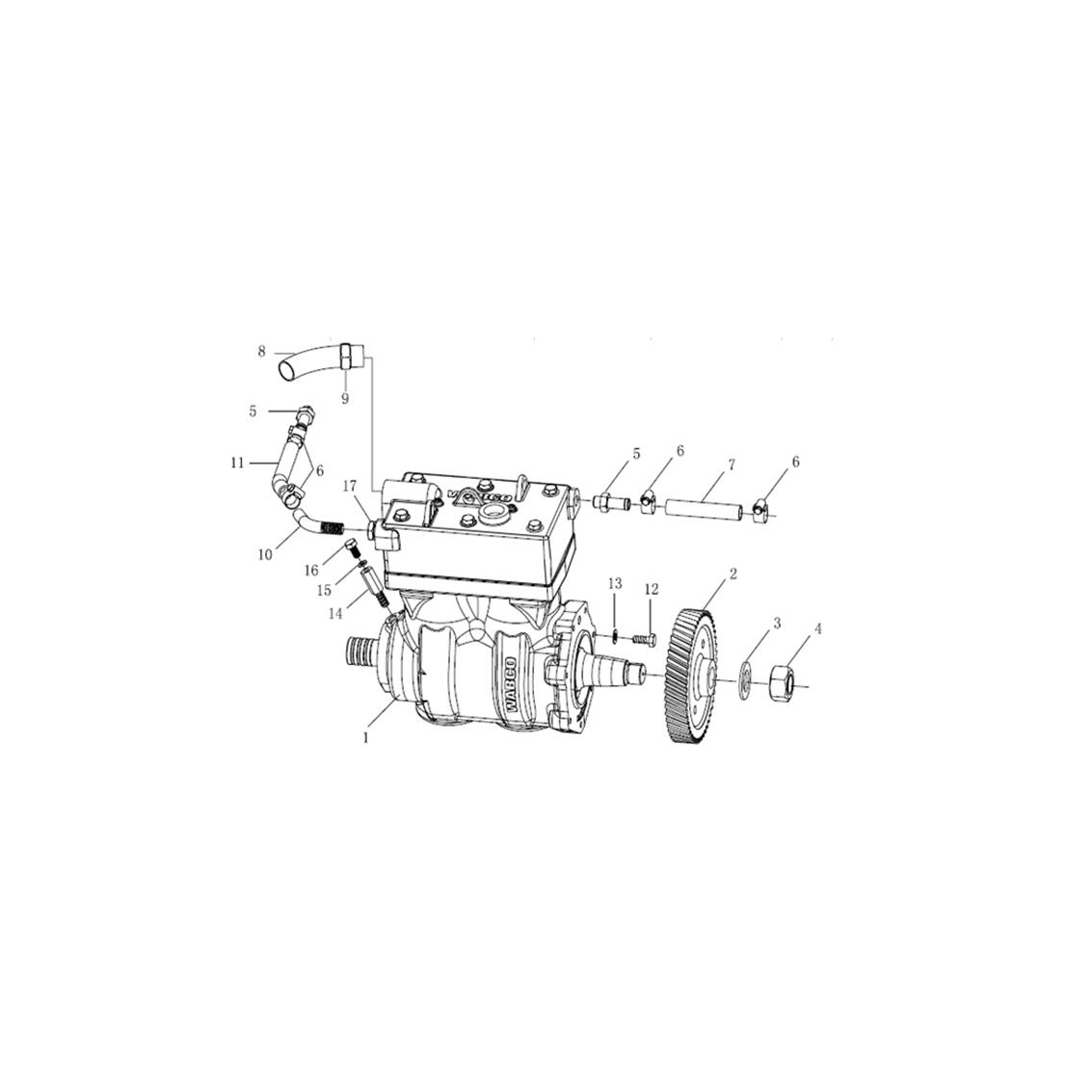

  • WATER-COOLED AIR COMPRESSOR
    WATER-COOLED AIR COMPRESSOR

    2016-09-27

       NO. Part NO Part Name Chinese Name 1 VG1246130008 空压机总成 Air compressor 2 VG1246130009 空压机齿轮 Air compressor gear 3 VG1246130010 六角螺母 Hexagon nut 4 VG1246130012 O型密封圈 O-ring 5 Q150B1030 六角头螺栓 Hex head bolt 6 Q1201040F3 双头螺栓 Hex head bolt 7 Q340B10 六角螺母 Hexagon nut 8 Q40310 弹簧垫圈 Spring washer 9 VG1246130016 空压机进气管接头 Elbow connector 10 190004000000 六角螺母 Hexagon nut 11 VG2600130037 垫圈 Wash...

    read more
  • ENGINE REAR POWER TAKE-OFF SUBGROUP
    ENGINE REAR POWER TAKE-OFF SUBGROUP

    2016-09-27

     NO. Part no Part Name Chinese name 1 AZ1500019035 Flywheel housing 后取力飞轮壳 2 190003934310 Retaining ring 孔用弹性挡圈 3 190003311416 Bearing 轴承 4 190003901418 Dowel 定位销 5 VG1500019014 Crankshaft gear 曲轴齿轮 6 190003802527 Hex head bolt 六角头螺栓 7 190003931122 Spring lockwasher 弹簧垫圈 8 VG1500019024 Bearing cover 轴承盖 9 AZ1500019031 Power take-off housing 取力器壳 10 190003933251 Retaining ring 轴用弹性挡圈 11 AZ9003...

    read more
