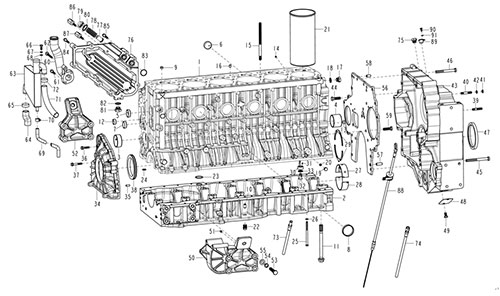

| NO. | Part no | Part name | Chinese name |
| - | AZ1246010049 | Cylinder block assembly | 气缸体总成 |
| 1 | AZ1246010040 | Cylinder block | 气缸体 |
| 2 | AZ1246010029 | Crankcase | 曲轴箱 |
| 3 | VG1246010042 | Camshaft bush | 凸轮轴衬套 |
| 4 | VG1246010043 | Camshaft bush | 凸轮轴衬套 |
| 5 | 190003989289 | Core hole plug | 碗形塞 |
| 6 | VG1246010044 | Core hole plug | 碗形塞 |
| 7 | VG1246010041 | Core hole plug | 碗形塞 |
| 8 | VG1246010046 | Core hole plug | 碗形塞 |
| 9 | VG1246010048 | Core hole plug | 碗形塞 |
| 10 | VG1246010032 | Positioning pin | 定位销 |
| 11 | VG1246010033 | Main bearing bolt | 主轴承螺栓 |
| 12 | 190003989204 | Core hole plug | 碗形塞 |
| 13 | 190003989480 | Core hole plug | 碗形塞 |
| 14 | VG1540040011 | Screw plug | 油孔堵塞 |
| 15 | VG1246010093 | Stud | 气缸盖螺栓 |
| 16 | Q5211016 | Dowel pin | 圆柱销 |
| 17 | Q617B18 | Screw plug | 六角头螺塞 |
| 18 | VG9003080007 | Sealing washer | 复合密封垫圈 |
| 19 | VG1246010129 | Socket plug | 内六角螺塞 |
| 20 | VG9003080003 | Sealing washer | 复合密封垫圈 |
| 21 | VG1246010028 | Cylinder liner | 气缸套 |
| 22 | VG1246010055 | Screw plug | 螺塞 |
| 23 | VG1400010032 | O-ring | 密封圈 |
| 24 | VG1246010031 | O-ring | O型密封圈 |
| 25 | Q150B08125 | Hex head bolt | 六角头螺栓 |
| 26 | Q41808 | Spring washer | 波形弹簧垫圈 |
| 27 | VG1246010034 | Crankshaft main bearing(top) | 主轴瓦（上瓦） |
| 28 | VG1246010035 | Crankshaft main bearing(down) | 主轴瓦（下瓦） |
| 29 | VG1246010036 | Thrust washers | 止推片付 |
| 30 | VG1246010039 | Oil injection nozzle assembly | 喷嘴组件 |
| 31 | Q5280308 | Spring dowel pin | 弹性圆柱销 |
| 32 | 190003962621 | Hollow bolt | 空心螺栓 |
| 33 | VG9003080005 | Sealing washer | 复合密封垫圈 |
| 34 | VG1246010001 | Front cover | 前罩壳 |
| 35 | Q5210820 | Dowel pin | 圆柱销 |
| 36 | Q1840835 | Hex head bolt | 六角法兰面螺栓 |
| 37 | Q1840850 | Hex head bolt | 六角法兰面螺栓 |
| 38 | VG1246010005 | Front crankshaft oil seal | 前油封 |
| 39 | VG9003813543 | Stud | 双头螺柱 |
| 40 | Q1201045F3 | Stud | 双头螺柱 |
| 41 | Q340B10 | Hexagon nut | 六角螺母 |
| 42 | Q40310 | Spring washer | 弹簧垫圈 |
| 43 | AZ1246010019 | Flywheel housing | 飞轮壳 |
| 44 | Q150B1240TF2 | Hex head bolt | 六角头螺栓 |
| 45 | Q150B12120TF2 | Hex head bolt | 六角头螺栓 |
| 46 | Q150B12105TF2 | Hex head bolt | 六角头螺栓 |
| 47 | VG1047010050 | Rear crankshaft oil seal | 后油封总成(迷宫式) |
| 48 | VG1800210011 | Cover | 观察孔盖 |
| 49 | Q150B1018 | Hex head bolt | 六角头螺栓 |
| 50 | VG1246010022 | Support | 前左支架 |
| 51 | Q5210814 | Dowel pin | 圆柱销 |
| 52 | VG1246010023 | Support | 前右支架 |
| 53 |
