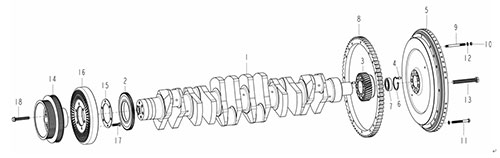

| NO. | Part NO | Part Name | Chinese Name |
| 1 | AZ1246020013 | Crankshaft | 曲轴 |
| 2 | VG1246020012 | Front crankshaft gear | 曲轴前齿轮 |
| 3 | VG1246020011 | Rear crankshaft gear | 曲轴后齿轮 |
| 4 | Q5210816 | Dowel pin | 圆柱销 |
| 5 | AZ1246020025A | Flywheel | 飞轮 |
| 6 | Q43062 | Circlip | 孔用弹性挡圈 |
| 7 | 190003311416 | Ball bearing | 球轴承 |
| 8 | VG2600020208 | Ring gear | 飞轮齿圈 |
| 9 | Q1201090F3 | Stud | 双头螺柱 |
| 10 | Q340B10 | Hexagon nut | 六角螺母 |
| 11 | Q150B1085 | Hex head bolt | 六角头螺栓 |
| 12 | Q41810 | Spring washer | 波形弹性垫圈 |
| 13 | VG1246020010 | Flywheel bolt | 飞轮螺栓 |
| 14 | VG1246020001 | Crankshaft belt pulley | 曲轴皮带轮 |
| 15 | VG1246020003 | Washer | 垫环 |
| 16 | VG1246020002 | Vibration damper | 硅油减震器 |
| 17 | Q150B1030 | Hex head bolt | 六角头螺栓 |
| 18 | VG1246020004 | Hex head bolt | 六角头螺栓 |
