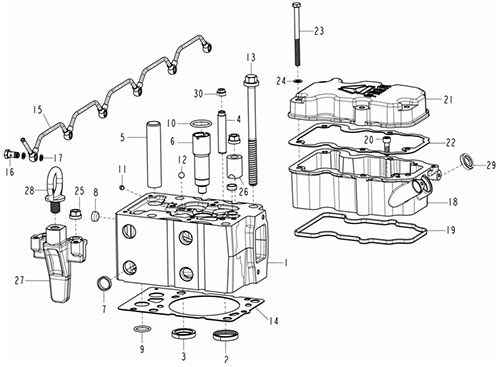

| NO. | Part no | Part Name | Chinese name |
| - | AZ1246040010 | Cylinder head assembly | 气缸盖总成 |
| 1 | AZ1246040011 | Cylinder head | 气缸盖 |
| 2 | VG1246040012 | Intake valve support | 进气门座 |
| 3 | VG1246040013 | Exhaust valve support | 排气门座 |
| 4 | VG1246040014 | Valve guide | 气门导管 |
| 5 | VG1246040015 | Valve push rod bush | 气门推杆衬套 |
| 6 | VG1246040016 | Fuel injector bush | 喷油器衬套 |
| 7 | 190003989725 | Core hole plug | 碗形塞 |
| 8 | VG1246040031 | Core hole plug | 碗形塞 |
| 9 | VG1246040018 | Sealing ring | 密封圈 |
| 10 | VG1246040019 | Sealing ring | 密封圈 |
| 11 | VG1540040011 | Bolt plug | 油孔堵塞 |
| 12 | VG1540040013 | Steel ball | 钢珠 |
| 13 | VG1246040020 | Cylinder head bolt | 气缸盖主螺栓 |
| 14 | VG1246040021 | Cylinder head gasket | 气缸盖衬垫 |
| 15 | VG1246040001 | Vent-pipe assembly | 缸盖放气管总成 |
| 16 | VG1246040022 | Hollow bolt | 空心螺栓 |
| 17 | Q72310 | Sealing washer | 密封垫圈 |
| 18 | VG1246040004A | Cylinder head cover (down) | 摇臂罩下罩总成 |
| 19 | VG1246040023 | Cylinder head cover sealing ring | 气缸盖罩密封圈 |
| 20 | Q218B0825 | Socket bolt | 内六角圆柱头螺钉 |
| 21 | VG1246040003 | Cylinder head cover (top) | 摇臂罩上罩 |
| 22 | VG1246040005 | Cylinder head cover gasket | 气缸盖罩衬垫 |
| 23 | Q150B08110 | Hex head bolt | 六角头螺栓 |
| 24 | Q41808 | Spring washer | 波形弹簧垫圈 |
| 25 | VG1200040034 | Nut | 带肩螺母 |
| 26 | VG1200040023A | Clip | 夹紧块 |
| 27 | VG1246040008 | Clamping yoke | 吊环夹紧块 |
| 28 | VG14010388 | Eye screw | 吊环螺钉 |
| 29 | VG1540040022A | Reinforced seal | 骨架油封 |
| 30 | VG1246050027 | Valve stem seal | 气门阀杆密封套 |
