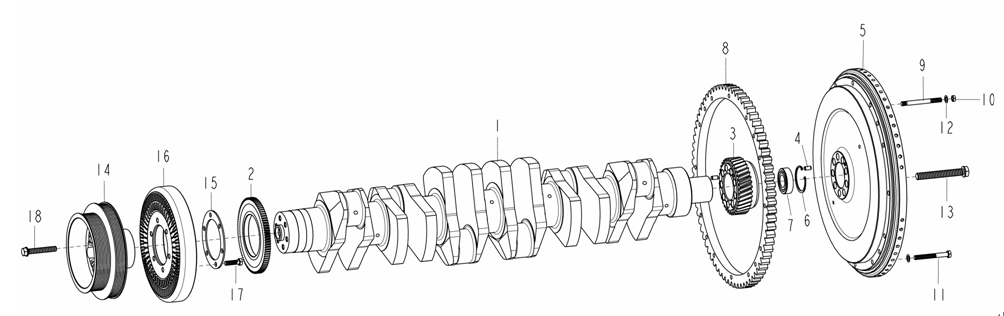

NO. |
Part NO |
Part Name |
Chinese Name |
|
1 |
AZ1246020013 |
Crankshaft |
曲轴 |
|
2 |
VG1246020012 |
Front crankshaft
gear |
曲轴前齿轮 |
|
3 |
VG1246020011 |
Rear crankshaft
gear |
曲轴后齿轮 |
|
4 |
Q5210816 |
Dowel pin |
圆柱销 |
|
5 |
AZ1246020025A |
Flywheel |
飞轮 |
|
6 |
Q43062 |
Circlip |
孔用弹性挡圈 |
|
7 |
190003311416 |
Ball bearing |
球轴承 |
|
8 |
VG2600020208 |
Ring gear |
飞轮齿圈 |
|
9 |
Q1201090F3 |
Stud |
双头螺柱 |
|
10 |
Q340B10 |
Hexagon nut |
六角螺母 |
|
11 |
Q150B1085 |
Hex head bolt |
六角头螺栓 |
|
12 |
Q41810 |
Spring washer |
波形弹性垫圈 |
|
13 |
VG1246020010 |
Flywheel bolt |
飞轮螺栓 |
|
14 |
VG1246020001 |
Crankshaft belt
pulley |
曲轴皮带轮 |
|
15 |
VG1246020003 |
Washer |
垫环 |
|
16 |
VG1246020002 |
Vibration damper |
硅油减震器 |
|
17 |
Q150B1030 |
Hex head bolt |
六角头螺栓 |
|
18 |
VG1246020004 |
Hex head bolt |
六角头螺栓 |
