CYLINDER BLOCK

Product catalog

D12 EURO 2

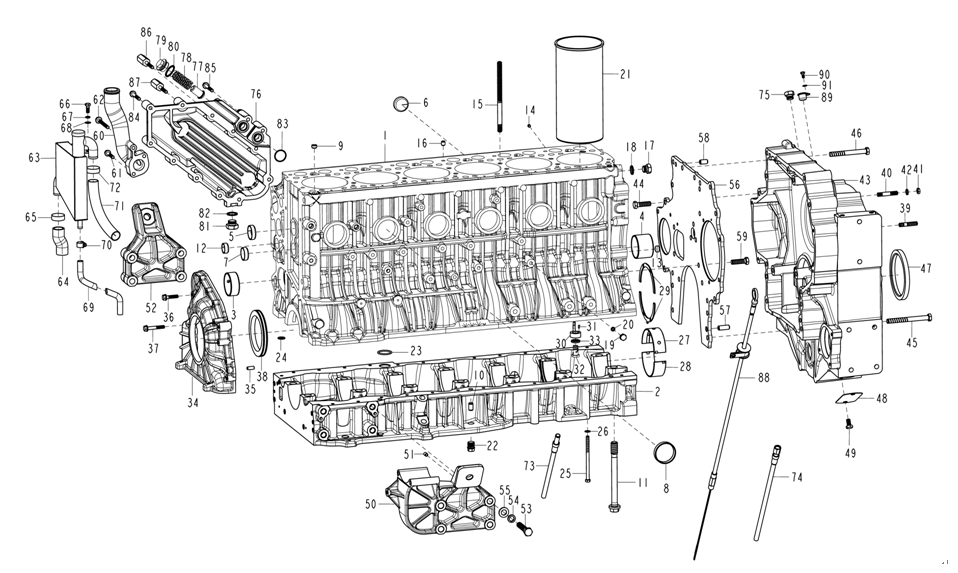

CYLINDER BLOCK

2016-09-27 12:06:14

NO.	Part no	Part Name	Chinese name
-	AZ1246010049	Cylinder block assembly	气缸体总成
1	AZ1246010040	Cylinder block	气缸体
2	AZ1246010029	Crankcase	曲轴箱
3	VG1246010042	Camshaft bush	凸轮轴衬套
4	VG1246010043	Camshaft bush	凸轮轴衬套
5	190003989289	Core hole plug	碗形塞
6	VG1246010044	Core hole plug	碗形塞
7	VG1246010041	Core hole plug	碗形塞
8	VG1246010046	Core hole plug	碗形塞
9	VG1246010048	Core hole plug	碗形塞
10	VG1246010032	Positioning pin	定位销
11	VG1246010033	Main bearing bolt	主轴承螺栓
12	190003989204	Core hole plug	碗形塞
13	190003989480	Core hole plug	碗形塞
14	VG1540040011	Screw plug	油孔堵塞
15	VG1246010093	Stud	气缸盖螺栓
16	Q5211016	Dowel pin	圆柱销
17	Q617B18	Screw plug	六角头螺塞
18	VG9003080007	Sealing washer	复合密封垫圈
19	VG1246010129	Socket plug	内六角螺塞
20	VG9003080003	Sealing washer	复合密封垫圈
21	VG1246010028	Cylinder liner	气缸套
22	VG1246010055	Screw plug	螺塞
23	VG1400010032	O-ring	密封圈
24	VG1246010031	O-ring	O型密封圈
25	Q150B08125	Hex head bolt	六角头螺栓
26	Q41808	Spring washer	波形弹簧垫圈
27	VG1246010034	Crankshaft main bearing(top)	主轴瓦（上瓦）
28	VG1246010035	Crankshaft main bearing(down)	主轴瓦（下瓦）
29	VG1246010036	Thrust washers	止推片付
30	VG1246010039	Oil injection nozzle assembly	喷嘴组件
31	Q5280308	Spring dowel pin	弹性圆柱销
32	190003962621	Hollow bolt	空心螺栓
33	VG9003080005	Sealing washer	复合密封垫圈
34	VG1246010001	Front cover	前罩壳
35	Q5210820	Dowel pin	圆柱销
36	Q1840835	Hex head bolt	六角法兰面螺栓
37	Q1840850	Hex head bolt	六角法兰面螺栓
38	VG1246010005	Front crankshaft oil seal	前油封
39	VG9003813543	Stud	双头螺柱
40	Q1201045F3	Stud	双头螺柱
41	Q340B10	Hexagon nut	六角螺母
42	Q40310	Spring washer	弹簧垫圈
43	AZ1246010019	Flywheel housing	飞轮壳
44
