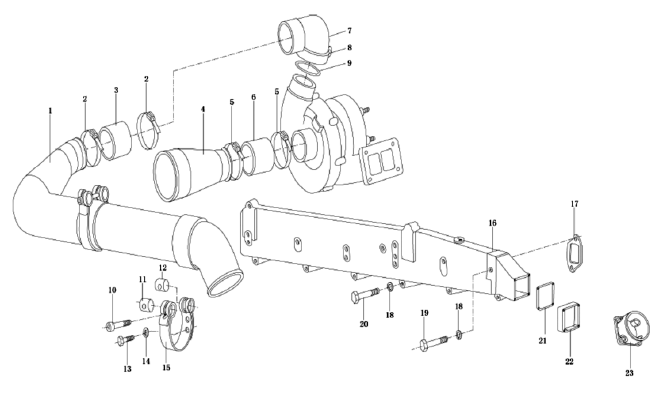

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
6.126E+11 |
管子总成 |
Pipe assembly |
|
2 |
90003989312 |
软管卡箍 |
Hose clamp |
|
3 |
6.126E+11 |
带纤维夹层橡胶软管 |
Rubber hose with fiber |
|
4 |
6.126E+11 |
压气机进气管 |
Compressor inlet pipe |
|
5 |
90003989318 |
软管卡箍 |
Hose clamp |
|
6 |
6.126E+11 |
胶管 |
Rubber hose |
|
7 |
61560110165 |
连接弯管 |
Connecting elbow |
|
8 |
61560110226 |
夹子 |
Clip |
|
9 |
90320035 |
密封圈 |
Sealing ring |
|
10 |
90003862462 |
内六角圆柱头螺钉 |
Inner six angle cylinder head screw |
|
11 |
209190017 |
拉紧销 |
Tightening pin |
|
12 |
1700550013 |
张紧销 |
Tensioning pin |
|
13 |
90003802415 |
六角头螺栓 |
Hexagon headed bolt |
|
90003802411 |
六角头螺栓 |
Hexagon headed bolt |
|
|
14 |
609E110036 |
调整垫圈 |
Adjusting washer |
|
15 |
61560110021 |
卡箍带 |
Clip band |
|
16 |
612600111766 |
进气管总成 |
Intake manifold assembly |
|
17 |
61500110024 |
进气管垫片 |
Air inlet pipe gasket |
|
18 |
90003932023 |
波形弹性垫圈 |
Wave spring washer |
|
19 |
614110064 |
进气管紧固螺栓 |
Intake pipe fastening bolt |
|
20 |
90003800465 |
六角头螺栓 |
Hexagon headed bolt |
|
21 |
612630120002 |
垫片 |
Shim |
|
22 |
612630120003 |
加热器 |
Heater |
|
23 |
612600111755 |
进气接管 |
Inlet nozzle |
|

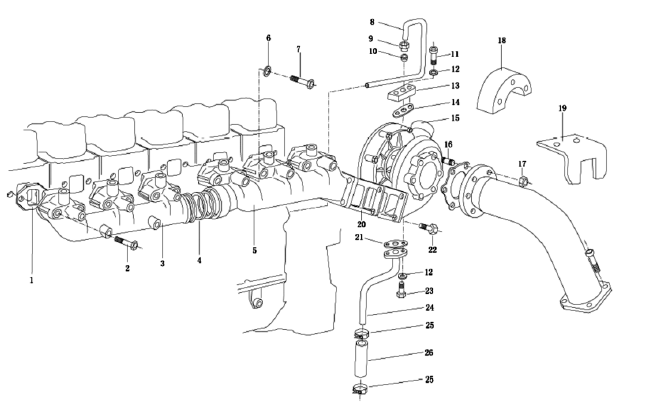

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
61560110242 |
排气管垫片 |
Exhaust pipe gasket |
|
2 |
61560110104 |
排气管紧固螺栓 |
Exhaust pipe fastening bolt |
|
3 |
6.126E+11 |
前排气歧管 |
Front exhaust manifold |
|
6.126E+11 |
前排气歧管 |
Front exhaust manifold |
|
|
4 |
6.126E+11 |
排气管密封环 |
Exhaust pipe sealing ring |
|
5 |
6.126E+11 |
后排气歧管 |
Rear exhaust manifold |
|
6.126E+11 |
后排气歧管 |
Rear exhaust manifold |
|
|
6 |
609090003 |
止推垫圈 |
Thrust washer |
|
7 |
61560110105 |
排气管紧固螺栓 |
Exhaust pipe fastening bolt |
|
8 |
612600111833 |
进油管 |
Feed line |
|
612600070158 |
进油管 |
Feed line |
|
|
9 |
90003559513 |
管接头螺母 |
Pipe joint nut |
|
10 |
90003559563 |
卡套 |
Card set |
|
11 |
90003862428 |
内六角圆柱头螺钉 |
Inner six angle cylinder head screw |
|
12 |
188250083 |
自锁垫圈 |
Self lock washer |
|
13 |
81560110152 |
进油管法兰 |
Inlet pipe flange |
|
14 |
61560110242 |
进油管垫片 |
Inlet pipe pad |
|
15 |
612600118926 |
放气阀增压器 |
Air vent valve |
|
