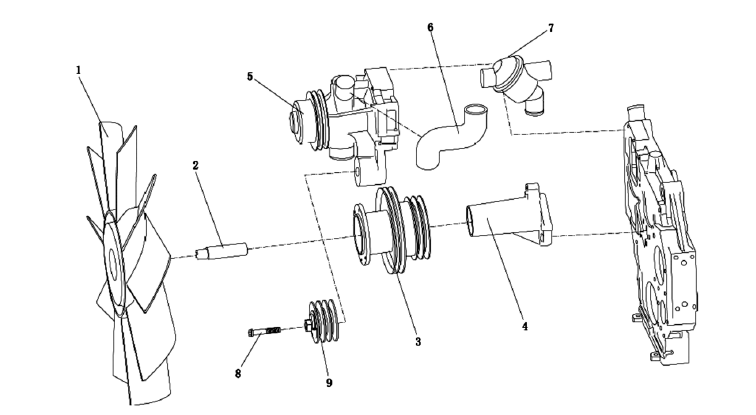

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
6.126E+11 |
硅油离合器风扇 |
Silicone oil clutch fan |
|
2 |
61500060150 |
轴 |
Axis |
|
3 |
61800061002 |
皮带轮 |
Pulley |
|
4 |
6.126E+11 |
风扇托架 |
Fan bracket |
|
5 |
6.126E+11 |
水泵总成 |
Water pump assembly |
|
6 |
6.126E+11 |
成型软管 |
Shaping hose |
|
7 |
614060135 |
节温器总成 |
Temperature sensor assembly |
|
8 |
90011400001 |
六角法兰螺栓 |
Hexagon flange bolts |
|
9 |
6.126E+11 |
张紧轮总成 |
Tension wheel assembly |
|

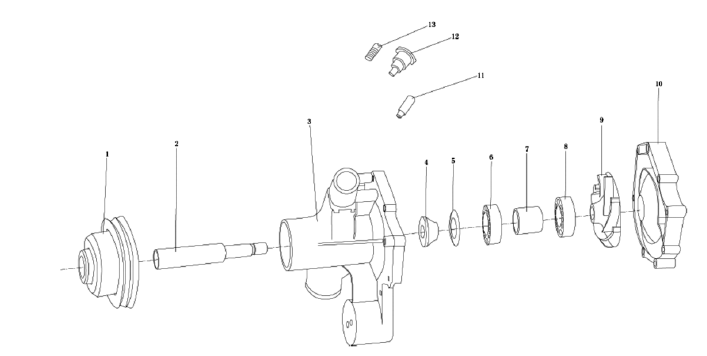

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
61800061004 |
皮带轮 |
Pulley |
|
2 |
61800061005 |
泵轴 |
Pump shaft |
|
3 |
6.126E+11 |
水泵盖 |
Water pump cover |
|
4 |
6.126E+11 |
C20 水封总成 |
C20 seal assembly |
|
5 |
61500060030 |
防护圈 |
Protective ring |
|
6 |
90016040002 |
圆柱滚子轴承 |
Cylindrical roller bearing |
|
7 |
61800061008 |
支承套 |
Supporting sleeve |
|
8 |
90016020017 |
深沟球轴承 |
Deep groove ball bearing |
|
9 |
61800061001 |
水泵叶轮 |
Pump impeller |
|
10 |
61800061003 |
水泵体 |
Pump body |
|
11 |
61000060100 |
黄油杯座 |
Cup holder |
|
12 |
270006125 |
黄油杯总成 |
Butter cup assembly |
|
13 |
612600060538 |
紧定螺钉 |
Fastening screw |
