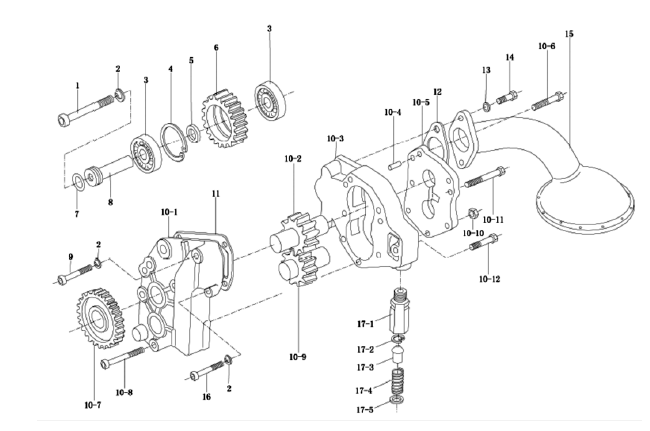

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
90003802578 |
六角头螺栓 |
Hexagon headed bolt |
|
2 |
90003931122 |
弹簧垫圈 |
Spring washer |
|
3 |
900033114lO |
向心球轴承 |
Radial ball bearing |
|
4 |
90003934732 |
带凸齿的孔用挡圈 |
Ring with convex tooth hole |
|
5 |
6140749 |
中间隔圈 |
Intermediate spacer |
|
6 |
614070061 |
机油泵中间齿轮 |
Oil pump intermediate gear |
|
7 |
614070155 |
密封圈 |
Sealing ring |
|
8 |
6140756 |
中间齿轮轴 |
Intermediate gear shaft |
|
9 |
90003800551 |
六角头螺栓 |
Hexagon headed bolt |
|
10 |
AZl500070021A |
48mm 加宽机油泵 |
48mm widening oil pump |
|
10月1日 |
61500070029 |
机油泵前盖 |
Oil pump front cover |
|
10月2日 |
AZ1500070019A |
机油泵齿轮总成 |
Oil pump gear assembly |
|
10月3日 |
AZ1500070015A |
机油泵壳体 |
Oil pump casing |
|
10月4日 |
90003901420 |
圆柱销 |
Cylindrical pin |
|
10月5日 |
61500070024 |
机油泵后盖 |
Oil pump cover |
|
10月6日 |
内六角圆柱头螺钉 |
Inner six angle cylinder head screw |
|
|
10月7日 |
614070060 |
机油泵驱动齿轮 |
Oil pump drive gear |
|
10月8日 |
90003802569 |
六角头螺栓 |
Hexagon headed bolt |
|
10月9日 |
AZ1500070020A |
机油泵齿轮总成 |
Oil pump gear assembly |
|
10月10日 |
90012210003 |
1 型六角螺母 |
Six type 1 corner nut |
|
10月11日 |
90003800458 |
六角头螺栓 |
Hexagon headed bolt |
|
41924 |
90003800441 |
六角头螺栓 |
Hexagon headed bolt |
|
11 |
614070055 |
机油泵垫片 |
Oil pump gasket |
|
12 |
614070078 |
垫片 |
Shim |
|
13 |
90003930271 |
平垫圈 |
Flat washer |
|
14 |
90003802523 |
六角头螺栓 |
Hexagon headed bolt |
|
15 |
61800070051 |
集滤器总成 |
Assembly filter assembly |
|
16 |
90003802527 |
六角头螺栓 |
Hexagon headed bolt |
|
17 |
61500070099 |
机油泵限压阀总成 |
Oil pump pressure limiting valve assembly |
|
41656 |
61500070098 |
限压阀体 |
Pressure limiting valve |
|
41687 |
AZ9003930011 |
孔用弹性挡圈 |
Circlip for hole |
|
41715 |
614070130 |
限压阀 |
Pressure limiting valve |
|
41746 |
614070131 |
弹簧 |
Spring |
|
41776 |
681270027 |
垫片 |
Shim |
