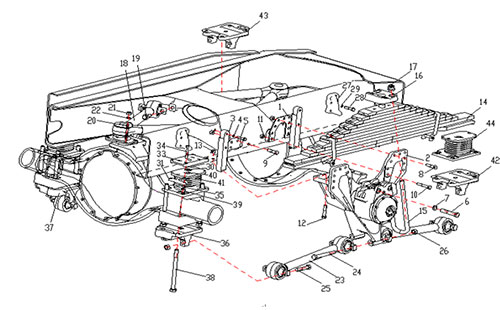

| NO | PART NO | QUANTITY | Designation | 名称 |
| 1 | AZ9725523309 | 4 | Plate | 垫板 |
| 2 | AZ9725520220 | 2 | Balance shaft box C | 平衡轴带轴壳总成 |
| 2/1 | AZ9725520237 | 2 | balance shaft | 平衡轴 |
| 2/2 | Q5211630 | 2 | column pin | 园柱销 |
| 2/3 | AZ9725520233 | 2 | bracket | 支架 |
| 2/4 | AZ9725520235 | 2 | Balance shaft box | 平衡轴壳 |
| 2/5 | WG9114520042 | 2 | Ball bearing | 球面轴承 |
| 2/6 | 190003962021 | 2 | Screw | 锥螺纹内六角螺塞 |
| 2/7 | 199114520136 | 2 | bearing Seal cover | 轴承油封盖 |
| 2/8 | AZ9114520222 | 2 | ring | 型环 |
| 2/9 | AZ9114520223 | 2 | Gasket | 轴密封圈 |
| 2/10 | WG614 130062 | 2 | Gasket | 密封圈 |
| 2/11 | AZ9725520238 | 2 | Space sleeve | 间隔衬套 |
| 2/12 | 199014520192 | 2 | orientation washer | 定位垫圈 |
| 2/13 | AZ9725520239 | 2 | Bearing pressing block | 轴承压块 |
| 2/14 | Q40312 | 12 | Spring washer | 弹簧垫圈 |
| 2/15 | Q150B1245TF2 | 12 | Screw | 六角头螺栓 |
| 2/16 | 199014520311 | 2 | Housing cover | 壳盖 |
| 2/17 | Q40308 | 16 | Spring washer | 弹簧垫圈 |
| 2/18 | Q150B0820 | 16 | Screw | 六角头螺栓 |
| 3 | WG9925520365 | 4 | Plate | 导向板 |
| 4 | Q40312 | 8 | Spring washer | 弹簧垫圈 |
| 5 | Q151C1260 | 8 | Screw | 六角头螺栓 |
| 6 | Q151B20120 | 4 | Screw | 六角头螺栓 |
| 7 | Q40120 | 4 | Washer | 平垫圈 |
| 8 | Q151B1660 | 28 | Screw | 六角头螺栓 |
| 9 | Q151B1675 | 2 | Screw | 六角头螺栓 |
| 10 | Q151B1690 | 8 | Screw | 六角头螺栓 |
| 11 | 190003888459 | 38 | Lock nut | 自锁螺母 |
| 12 | Q151B1680 | 16 | Screw | 六角头螺栓 |
| 13 | 190003888459 | 16 | Lock nut | 自锁螺母 |

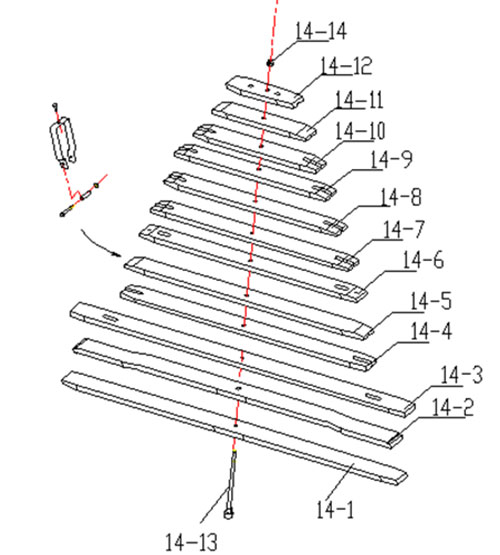

| 14 | WG9725520281 | 2 | Rear spring C | 后钢板弹簧总成（1697桥） |
| 1/14 | WG9725520281+001 | 2 | 1st leaf, rear spring | 后钢板弹簧总成第一片（1697桥） |
| 2/14 | WG9725520281+002 | 2 | 2nd leaf, rear spring | 后钢板弹簧总成第二片（1697桥） |
| 3/14 | WG9725520281+003 | 2 | 3rd leaf, rear spring | 后钢板弹簧总成第三片（1697桥） |
| 4/14 | WG9725520281+004 | 2 | 4th leaf, rear spring | 后钢板弹簧总成第四片（1697桥） |
| 5/14 | WG9725520281+005 | 2 | 5th leaf, rear spring | 后钢板弹簧总成第五片（1697桥） |
| 6/14 | WG9725520281+006 | 2 | 6th leaf, rear spring | 后钢板弹簧总成第六片（1697桥） |
| 7/14 | WG9725520281+007 | 2 | 7th leaf, rear spring | 后钢板弹簧总成第七片（1697桥） |
| 8/14 | WG9725520281+008 | 2 | 8th leaf, rear spring | 后钢板弹簧总成第八片（1697桥） |
| 9/14 | WG9725520281+009 | 2 | 9th leaf, rear spring | 后钢板弹簧总成第九片（1697桥） |
| 10/14 | WG9725520281+010 | 2 | 10th leaf, rear spring | 后钢板弹簧总成第十片（1697桥） |
| 11/14 | WG9725520281+011 | 2 | 11th leaf, rear spring | 后钢板弹簧总成第十一片（1697桥） |
|
