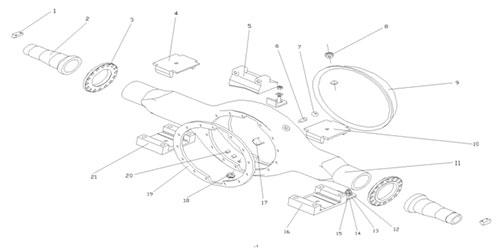

| NO. | Part No. | Quantity | Part Name | Chinese name |
| 1 | AZ9761336005 | 2 | Bracket | 传感器支座 |
| 2 | AZ9716332002 | 2 | Axle head | 轴头 |
| 3 | AZ9761330074 | 2 | Flange plate | 固定盘 |
| 4 | AZ9761330017 | 1 | Up leaf spring bracket | 板簧上座 |
| 5 | AZ9761330009 | 1 | Bracket | HW1697桥后桥上推力杆座 |
| 6 | 199000330005 | 1 | Breather tie-in | 通气接头 |
| 7 | 1 80 730118 | 1 | Air-out cover | 排气罩 |
| 8 | 181500010163 | 1 | Screw | 螺塞 |
| 9 | AZ9761330053 | 1 | Cover | HW1697桥后桥后盖 |
| 10 | AZ9761330019 | 1 | Up leaf spring bracket | 板簧上座 |
| 11 | AZ9761330573 | 1 | Housing | HOWO1697桥桥壳中段 |
| 12 | WG40X1182 | 2 | Nut | 自锁螺母-GB3098.2 12.0级 |
| 13 | WG1229N1626 | 4 | Washer | 平垫圈 |
| 14 | WG41X1090 | 2 | Screw | 六角头螺栓（12.9级） |
| 15 | AZ9761331198 | 2 | Supporting block | 支承块 |
| 16 | AZ9761330020 | 1 | Bottom leaf spring bracket | 板簧下座 |
| 17 | 199000410038 | 1 | Cover | 防护片 |
| 18 | 1586 330015 | 1 | Magnet plug | 磁性螺塞总成 |
| 19 | AZ9118330058 | 1 | Ring | 加强环 |
| 20 | 2297K6771 | 6 | Magnets | 磁块 |
| 21 | AZ9761330018 | 1 | Bottom leaf spring bracket | 板簧下座 |
