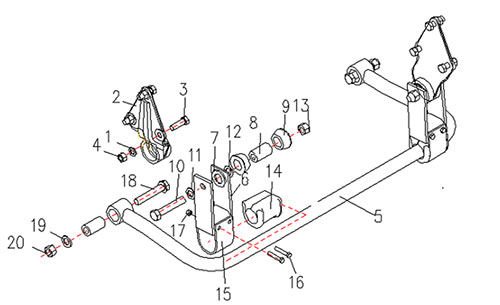

| NO | PART NO | QUANTITY | Designation | 名称 |
| 1 | Q40016 | 4 | Washer | 小垫圈 |
| 2 | 199100510008 | 2 | Stabilizer bracket | 稳定杆托架 |
| 3 | Q151B1650 | 6 | Screw | 六角头螺栓 |
| 4 | 190003888459 | 6 | Lock nut | 自锁螺母 |
| 5 | AZ9719680005 | 1 | Stabilizer rear | 后稳定杆 |
| 6 | AZ9725680011 | 2 | Blance nip C | 平衡夹总成 |
| 7 | WG9100680071 | 2 | Washer | 垫圈 |
| 8 | 199100680037 | 2 | Bush | 套筒 |
| 9 | 199100680066 | 4 | Bearing | 轴承 |
| 10 | WG80 680029 | 2 | Screw | 螺栓 |
| 11 | 1780 680030 | 2 | Washer | 垫圈 |
| 12 | 190003930010 | 2 | Washer | 垫圈 |
| 13 | 190003888459 | 2 | Lock nut | 自锁螺母 |
| 14 | 199100680067 | 2 | Rubber bearing | 橡胶轴承 |
| 15 | WG780 680032 | 2 | Bearing clip | 轴承夹 |
| 16 | Q151C12100 | 4 | Screw | 六角头螺栓 |
| 17 | 190003888457 | 4 | Lock nut | 自锁螺母 |
| 18 | WG80 680029 | 2 | Screw | 螺栓 |
| 19 | 1780 680030 | 2 | Washer | 垫圈 |
| 20 | 190003888459 | 2 | Lock nut | 自锁螺母 |
