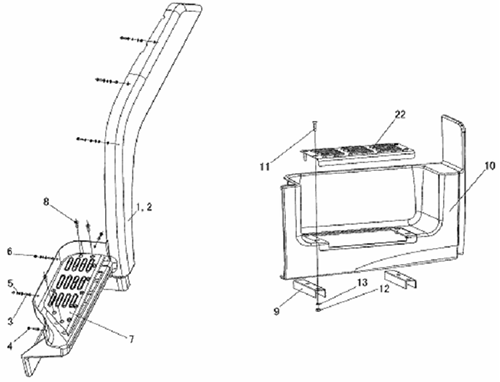

| NO. | Part No. | Part Name | Quantity |
| 1 | WG1642230012 | Left wheel fender | 1 |
| 2 | WG1642230013 | Right wheel fender | 1 |
| 3 | Q150B0620 | Screw | 14 |
| 4 | Q40106 | Washer | 14 |
| 5 | Q40306 | Spring washer | 14 |
| 6 | Q340B06 | Nut | 14 |
| 7 | WG1642230018 | Step left | 1 |
| 7a | WG1642230019 | Step right | 1 |
| 8 | Q2540830 | Screw | 8 |
| 9 | WG9725930017 | Bracket for step bow | 4 |
| 10 | WG1642240030 | Left step bow bottom | 1 |
| 10a | WG1642240031 | Right step bow bottom | 1 |
| 11 | Q150B0825 | Screw | 8 |
| 12 | Q340B08 | Nut | 8 |
| 13 | Q40308 | Spring washer | 8 |
| 14 | WG1642230003 | Left rear wheel fender | 1 |
| 15 | WG1642230004 | Right rear wheel fender | 1 |
| 15a | WG1642230005 | Aux.plate for wheel fender | 4 |
| 16 | AZ1642230008 | Washer | 18 |
| 17 | WG1642230007 | Pad for rear wheel fender | 2 |
