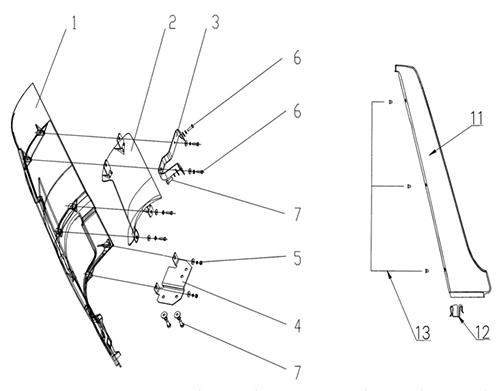

| NO. | Part No. | Part Name | Quantity |
| 1 | WG1642110001 | Outer side cover right | 1 |
| 1a | WG1642110002 | Outer side cover left | 1 |
| 2 | WG1642110003 | Inter plate right | 1 |
| 2a | WG1642110004 | Inter plate left | 1 |
| 3 | AZ1642110006 | Bracket | 2 |
| 4 | AZ1642110007 | Bracket right | 1 |
| 4a | AZ1642110008 | Bracket left | 1 |
| 5 | Q350B06 | Nut | 4 |
| 5a | Q40206 | Washer | 4 |
| 5b | Q40306 | Spring washer | 4 |
| 6 | Q150B0620 | Screw | 10 |
| 6a | Q40206 | Washer | 10 |
| 6b | Q40306 | Spring washer | 10 |
| 7 | Q150B0820 | Screw | 6 |
| 7a | Q40208 | Washer | 6 |
| 7b | Q40308 | Spring washer | 6 |
| 10 | WG1642110019 | ‘A’pole garnish left | 1 |
| 10a | WG1642110020 | ‘A’pole garnish right | 1 |
| 12 | WG1642110021 | Clip | 2 |
| 13 | WG1642110022 | Rivet | 6 |
