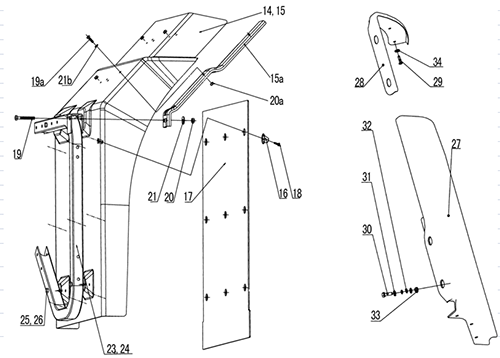

| NO. | Part No. | Part Name | Quantity |
| 18 | Q2713516 | Screw | 18 |
| 19 | Q150B0860 | Screw | 8 |
| 19a | Q150B0620 | Screw | 8 |
| 20 | Q340B08 | Nut | 8 |
| 20a | Q340B06 | Nut | 8 |
| 21 | Q40308 | Spring washer | 8 |
| 21a | Q40306 | Spring washer | 8 |
| 21b | Q40106 | Washer | 8 |
| 22 | WG1642240032 | Bottom step left | 1 |
| 22a | WG1642240033 | Bottom step right | 1 |
| 22b | Q2540830 | Screw | 8 |
| 22c | Q40308 | Spring washer | 8 |
| 22d | Q340B08 | Nut | 8 |
| 23 | WG9719930315 | Bracket for left rear mudguard | 1 |
| 24 | WG9719930313 | Bracket for right rear mudguard | 1 |
| 25 | Q150B16100 | Screw | 4 |
| 26 | Q33216 | Nut | 4 |
| 41 | WG1641230025 | Left mudguard | 1 |
| 42 | WG1641230026 | Right mudguard | 1 |
| 43 | AZ1641230027 | Strip for mudguard | 2 |
