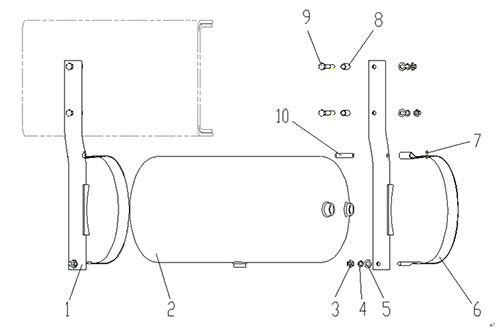

| NO | PART NO | QUANTITY | PART NAME | 名 称 |
| 1 | AZ9925360840 | 2 | Support assembly | 支架总成 |
| 2 | WG9000360715 | 1 | Air cylinder assembly Φ 275/30 l | 储气筒总成Φ275/30L |
| 3 | Q340B10 | 6 | Hexagonal nut | 六角螺母 |
| 4 | Q40310 | 6 | Spring washer | 弹簧垫圈 |
| 5 | Q40110 | 8 | Flat washer | 平垫圈 |
| 6 | WG99118360019 | 2 | Tighten belt assembly | 紧固带总成 |
| 7 | Q5003214 | 2 | Cotter pin | 开口销 |
| 8 | WG93 250096 | 4 | spacer | 隔套 |
| 9 | Q150B1055 | 4 | Hexagon head bolts | 六角头螺栓 |
| 10 | Q5101048 | 2 | pin | 销轴 |
