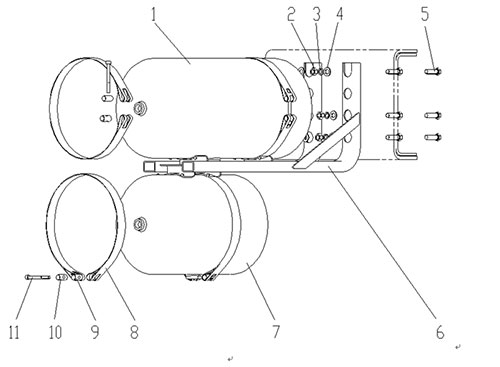

| NO | PART NO | QUANTITY | PART NAME | 名 称 |
| 1 | WG9000360715 | 1 | Air cylinder assembly Φ 275/30 l | 储气筒总成Φ275/30L |
| 2 | Q340B12 | 6 | Hexagonal nut | 六角螺母 |
| 3 | Q40312 | 6 | Spring washer | 弹簧垫圈 |
| 4 | Q40112 | 6 | Flat washer | 平垫圈 |
| 5 | Q150B1240 | 6 | Hexagon head bolts | 六角头螺栓 |
| 6 | AZ9925360860 | 1 | Air cylinder bracket assembly | 储气筒支架总成 |
| 7 | WG9000360716 | 1 | Air cylinder assembly Φ 275/20 l | 储气筒总成Φ275/20L |
| 8 | WG9719360024 | 4 | Tighten belt assembly | 紧固带总成 |
| 9 | WG09 190017 | 4 | The tension pin | 拉紧销 |
| 10 | WG700 550013 | 4 | The tension pin | 张紧销 |
| 11 | Q218B0880 | 4 | Hex cylinder head screw | 内六角圆柱头螺钉 |
