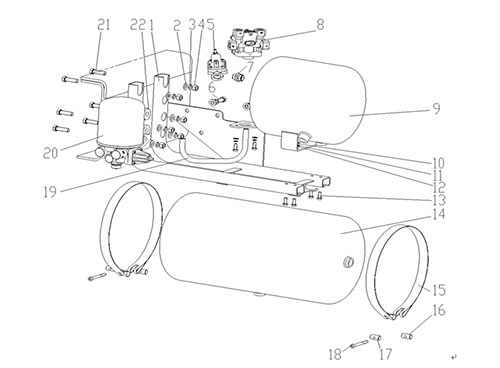

| NO. | Part No. | Quantity | Part Name | Chinese Name |
| 1 | AZ9925360844 | 1 | Air cylinder bracket assembly | 储气筒支架总成 |
| 2 | Q40112 | 9 | Flat washer | 平垫圈 |
| 3 | Q40312 | 9 | Spring washer | 弹簧垫圈 |
| 4 | Q340B12 | 6 | Type Ⅰ hexagonal nut | Ⅰ型六角头螺母 |
| 5 | WG9000360519 | 1 | The overflow valve 0.6 MPa without return | 溢流阀0.6MPa无回流 |
| 6 | Q151C1230 | 3 | Hexagon head bolts (teeth) | 六角头螺栓(细牙) |
| 7 | 190003559385 | 1 | Through joint body 2 - M22 x 1.5 next door | 隔壁直通接头体2-M22×1.5 |
| 8 | WG9000360523 | 1 | 4 circuit protection valve | 四回路保护阀 |
| 9 | WG9000360718 | 1 | Air cylinder assembly double cavity Φ 275/6 + 9 l | 储气筒总成双腔Φ275/6+9L |
| 10 | Q340B08 | 4 | Type Ⅰ hexagonal nut | Ⅰ型六角头螺母 |
| 11 | Q40308 | 6 | Spring washer | 弹簧垫圈 |
| 12 | Q40108 | 6 | Flat washer | 平垫圈 |
| 13 | Q150B0820 | 6 | Hexagon head bolts | 六角头螺栓 |
| 14 | WG9000360717 | 1 | Air cylinder assembly Φ 309/40 l | 储气筒总成Φ309/40L |
| 15 | WG9900360001 | 2 | Tighten belt assembly | 紧固带总成 |
| 16 | WG09 190017 | 2 | The tension pin | 拉紧销 |
| 17 | WG700 550013 | 2 | The tension pin | 张紧销 |
| 18 | Q218B0880 | 2 | Hex cylinder head screw | 内六角圆柱头螺钉 |
| 19 | AZ9925360866 | 1 | Forming the hose | 成形软管 |
| 20 | WG9000360521 | 1 | Air dryer | 空气干燥器 |
| 21 | Q150B1240 | 6 | Hexagon head bolts | 六角头螺栓 |
| 22 | AZ9725550001 | 4 | The big washer | 大垫圈 |
