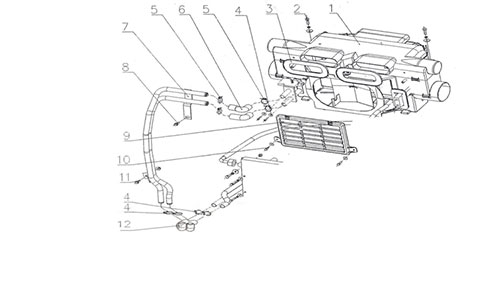

| NO. | Part No. | Part Name | Quantity |
| 1 | AZ1630840302 | Heater assembly with electro air intake | 1 |
| 2 | Q150B08030 | Screw | 2 |
| 2a | Q40308 | Spring washer | 2 |
| 2b | Q40208 | Washer | 2 |
| 3 | AZ1630840062 | Rubber sleeve | 2 |
| 4 | Q2714825 | Screw | 2 |
| 4a | Q40206 | Washer | 2 |
| 5 | 190003989340 | Circlip | 6 |
| 6 | WG1642840091 | Hose I | 2 |
| 7 | AZ1642840013 | Steel pipe | 1 |
| 8 | Q1840816 | Screw | 1 |
| 9 | AZ1642840084 | Protect net for air intake | 1 |
| 10 | Q150B0620 | Screw | 2 |
| 10a | Q40206 | Washer | 2 |
| 11 | Q1840825 | Screw | 1 |
| 11a | Q33008 | Nut | 1 |
| 12 | WG1642840092 | Hose II | 2 |
| 13 | WG1630840322 | Control panel | 1 |
| 14 | AZ1630820312 | Electrical line of air conditioner | 1 |
| 15 | WG1630820313 | Temperature sensor | 1 |
