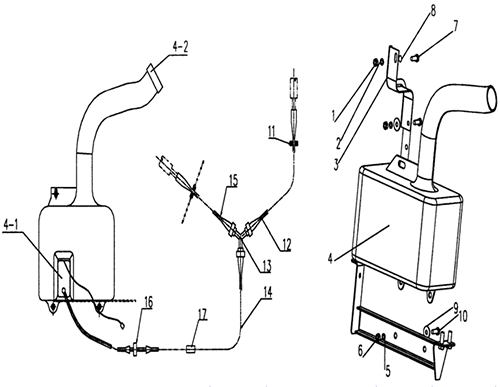

| NO. | Part No. | Part Name | Quantity |
| 1 | Q340B06 | Nut | 2 |
| 2 | Q40306 | Spring washer | 2 |
| 3 | AZ1642860009 | Bracket | 1 |
| 4 | WG1642860001 | Washing equipment | 1 |
| 4/1 | WG1642860001-1 | Pump | 1 |
| 4/2 | WG1642860001-2 | Cover | 1 |
| 5 | Q40308 | Spring washer | 2 |
| 6 | Q340B08 | Nut | 2 |
| 7 | Q150B0625 | Screw | 2 |
| 8 | Q40206 | Washer | 2 |
| 9 | Q40208 | Washer | 2 |
| 10 | Q150B0830 | Screw | 2 |
| 11 | AZ1642860007 | Protect ring | 2 |
| 12 | AZ1642860003 | Hose I | 1 |
| 12 | WG1642861003 | Hose I | 1 |
| 13 | 116000770121 | V nozzle | 1 |
| 14 | AZ1642860005 | Hose Ⅲ | 1 |
| 15 | AZ1642860004 | Hose II | 1 |
| 16 | AZ1600860121 | Nozzle | 1 |
| 17 | WG1600860008 | Clip | 3 |
