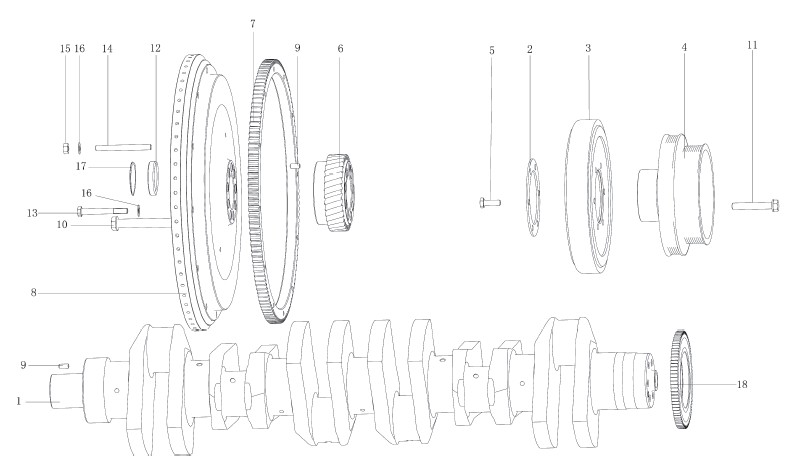

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612630020038 | 曲轴总成 | Crankshaft |
| 2 | 612630020015 | 垫片 | Washer |
| 3 | 612630020016 | 减振器 | Vibration damper |
| 4 | 612630020039 | 皮带轮 | Belt pulley |
| 5 | 90003802544 | 六角头螺栓 | Screw |
| 6 | 612630020006 | 曲轴齿轮 | Crank gear |
| 7 | 612600020208 | 飞轮齿圈 | Ring gear |
| 8 | 612630020051 | 飞轮 | Flywheel |
| 9 | 90003901418 | 圆柱销 | Pin |
| 10 | 612630020010 | 飞轮螺栓 | Screw |
| 11 | 612630020009 | 皮带轮螺栓 | Screw |
| 12 | 90003311416 | 向心球轴承 | Ball bearing |
| 13 | 90003800579 | 六角头螺栓 | Screw |
| 14 | 90003813571 | 双头螺柱 | Stud |
| 15 | 90003871305 | 1型六角螺母 | Nut |
| 16 | 90003932024 | 波形弹性垫圈 | Spring washer |
| 17 | 90003934310 | 孔用弹性挡圈 | Circlip |
| 18 | 612630020008 | 机油泵齿轮 | Oil pump gear |
