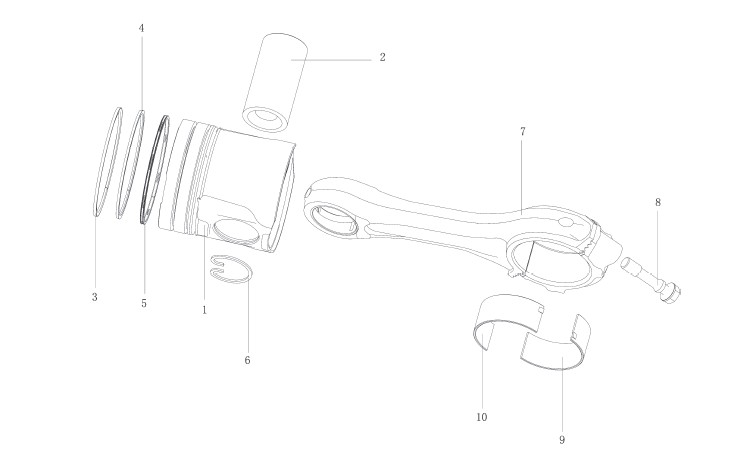

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612630020024 | 活塞 | Piston |
| 2 | 612630020025 | 活塞销 | Piston pin |
| 3 | 612630020026 | 梯形环 | Double ladder ring |
| 4 | 612630020027 | 锥面环 | Conical ring |
| 5 | 612630020028 | 螺旋撑簧油环 | Spiral spring oil ring |
| 6 | 612630020029 | 活塞销档圈 | Circlip |
| 7 | 612630020017 | 连杆 | Connecting rod |
| 8 | 61800030019 | 连杆螺栓 | Bolt |
| 9 | 612630020018 | 连杆下瓦 | Shell pin |
| 10 | 612630020019 | 连杆上瓦 | Shell pin |
