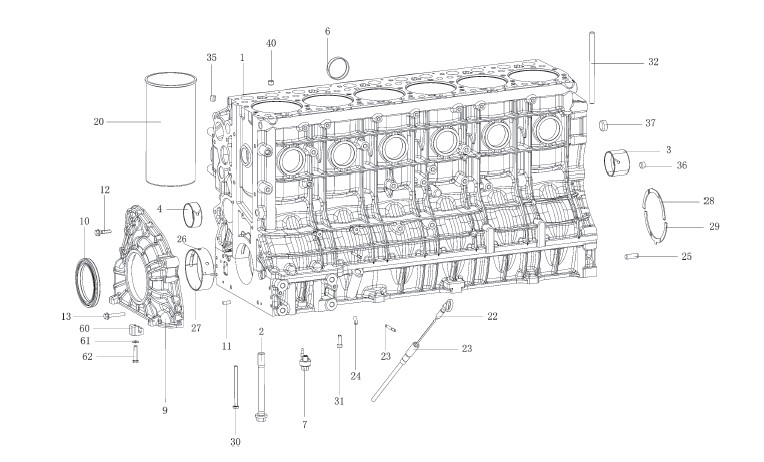

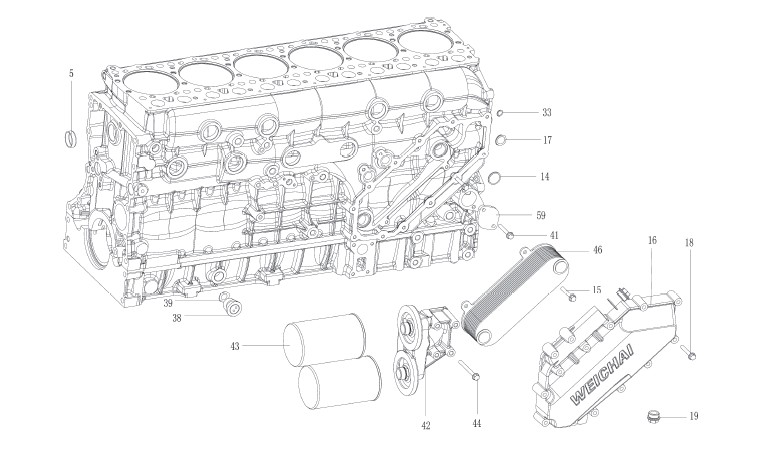

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612630010004 | 气缸体予装配 | Cylinder block |
| 2 | 612630010057 | 主轴承螺栓 | Screw |
| 3 | 612630010075 | 后端凸轮轴衬套 | Rear bush |
| 4 | 61560010029 | 凸轮轴衬套 | Bush |
| 5 | 612639000030 | 碗形塞 | Corehole plug |
| 6 | 612639000031 | 碗形塞 | Corehole plug |
| 7 | 612630010173 | 喷嘴总成 | Nozzle |
| 8 | 612630010065 | 密封垫 | Seal ring |
| 9 | 612630010043 | 前端盖 | Cover |
| 10 | 612630010106 | 曲轴前油封 | Front iol seal |
| 11 | 90003901420 | 圆柱销 | Pin |
| 12 | 612639000084 | 带法兰的六角头螺栓 | Hexagon bolt flanged |
| 13 | 612639000085 | 带法兰的六角头螺栓 | Hexagon bolt flanged |
| 14 | 612630010107 | 0型密封圈 | Seal ring |
| 15 | 90003802411 | 六角头螺栓 | Hexagon bolt |
| 16 | 612630010072 | 机油冷却器盖总成 | Cover,oil cooler |
| 17 | 612639000072 | 0型密封圈 | Seal ring |
| 18 | 612639000073 | 六角头螺栓 | Hexagon bolt |
| 19 | 612639000067 | 螺塞 | Screw plug |
| 20 | 612630010055 | 气缸套 | Clinder liner |
| 21 | 612630010100 | 油尺管组件 | Oil dipstick pipe |
| 22 | 612630010098 | 油尺 | Oil dipstick |
| 23 | 612639000079 | 双头螺栓 | Stud |
| 24 | 612639000093 | 定位销 | Pin |
| 25 | 612639000034 | 定位销 | Pin |
| 26 | 612630010088 | 主轴承上瓦 | Main bearing,upper |
| 27 | 612630010089 | 主轴承下瓦 | Main bearing,lower |
| 28 | 612630010070 | 上止推片 | Thrust plate,upper half |
| 29 | 612630010071 | 下止推片 | Thrust plate,lower half |
| 30 | 90003802493 | 六角头螺栓 | Hexagon bolt |
| 31 | 90003862428 | 内六角圆柱头螺钉 | Screw |
| 32 | 612630010069 | 气缸盖螺栓 | Screw |
| 33 | 612639000088 | 0型密封圈 | Seal ring |
| 34 | 612639000014 | 六角头螺栓 | Hexagon bolt |
| 35 | 612639000032 | 碗形塞 | Corehole plug |
| 36 | 612639000033 | 碗形塞 | Corehole plug |
| 37 | 90003989204 | 碗形塞 | Corehole plug |
| 38 | 61500090051 | 压力传感器 | Oil pressure |
| 39 | 612600080275 | 密封垫圈 | Washer |
| 40 | 612639000089 | 圆柱销 | Pin |
| 41 | 90003802523 | 六角头螺栓 | Hexagon bolt |
| 42 | 612630010217 | 机油滤清器座 | Bracket oil filter |
| 43 | 612630010239 | 机油滤清器 | Oil filter |
| 44 | 612639000078 | 六角头螺栓 | Screw |
| 45 | 612630010028 | 机油泵 | Oil pump |
| 46 | 612630010050 | 机油冷却器 | Oil cooler |
| 47 | 612630010038 | 油管组件 | Oil pipe |
| 48 | 612630010083 | 集滤器总成 | Prefilter |
| 49 | 6140778 | 垫片 | Gasket |
| 50 | 90003932024 | 波型弹性垫圈 | Spring washer |
| 51 | 90003802424 | 六角头螺栓 | Screw |
| 52 | 612630010143 | 限压阀 | Contral valve |
| 53 | 612639000013 | 圆柱销 | Pin |
| 54 | 612639000019 | 0型密封圈 | Seal ring |
| 55 | 612630010033 | 机油泵驱动齿轮 | Oil pump gear |
| 56 | 612600150108 |
