HOWO BRAKE

Product catalog

HOWO BRAKE

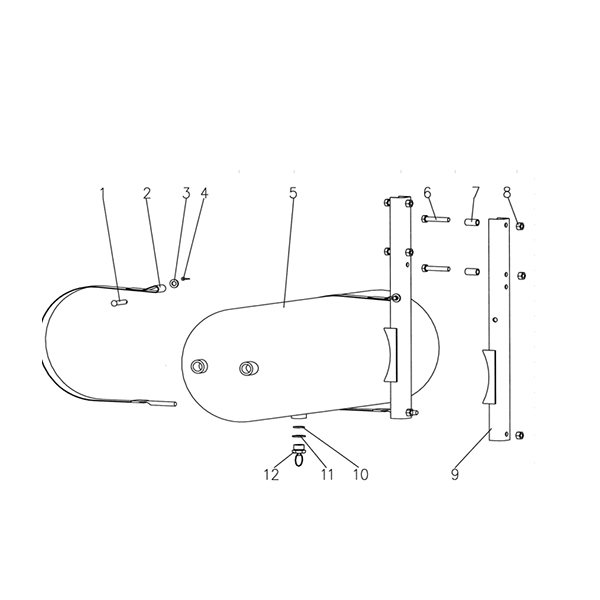

AIR RESERVOIR FIXATION FOR TRACTOR TRUCK Ⅲ
2016-09-27

NO. Part No. Part Name Quantity 1 Q5101048 Bolt 2 2 WG99118360019 Tension strap 2 3 Q40110 Washer 2 4 Q5003214 Split pin 2 5 WG9003550098 Air reservior(40L) 1 5/A WG9000360703 Air reservior(40L) 1 6 Q150B1055 Screw 4 7 1293 250096 Distance sleeve 4 8 Q33210 Nut 6 9 AZ9118360004 Bracket 2 10 WG9100360319 Gasket 1 11 1680 250092 Gasket 1 12 WG9000360115 Drain valve 1
read more

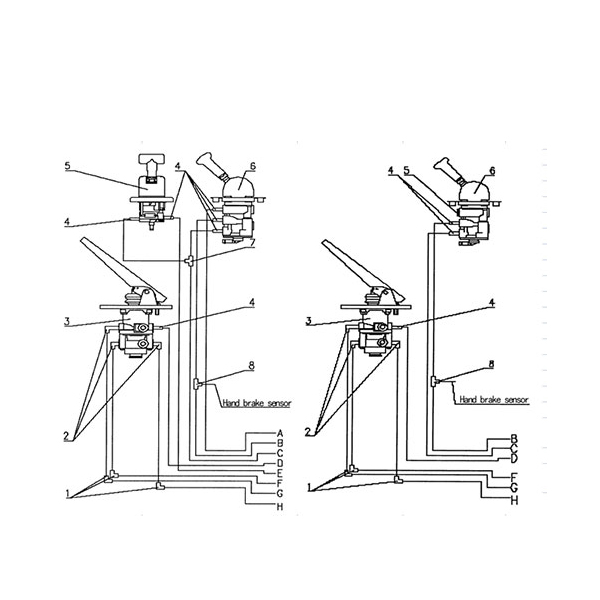

BRAKE MECHANISM IN CAB
2016-09-27

NO. Part No. Part Name Quantity 1 190003559479 Nozzle 3 2 190003559946 Angle nozzle 3 3 WG9719360005 Service brake valve 1 4 190003559945 Nozzle 6 5 WG9719360030 Hand brake valve for trailer 1 5a Q617B16 Screw 1 6 WG9000360165 Hand brake valve 1 6/A WG9000360522 Hand brake valve 1 7 190003559483 Nozzle 1 8 WG99100360111 Nozzle 1 11 AZ9719360050 Combination bracket 1 12 AZ9719360...
read more
FAST CONNECTION-PEG
2015-10-24

read more
Fast connection-peg2
2015-04-16

read more
Fast connection-peg3
2015-04-16

read more
Card sleeve joint1
2015-04-16

no part no part name A 　 1 190003559516 Pipe joint with a nut 2 190003559508 Pipe joint with a nut 3 190003559561 Card set 4 190003559509 Pipe joint with a nut 5 190003559558 Card set 6 190003559514 Pipe joint with a nut 7 190003559563 Card set 8 190003559520 Pipe joint with docking nut 9 190003559562 Card set 10 190003559538 To take over the joint of cutting sleeve type has the tape...
read more
PARTS FOR BRAKE
2015-04-13

NO. Part No. Part Name Quantity 1 Q72312T5F Gasket 2 2 190003098031 Gasket 2 3 190003098015 Gasket 2 4 WG9000360292 Gasket 2 5 1406070015 Gasket 2 5a 1880340023 Gasket 2 6 WG9100360319 Gasket 2 7 1680250092 Gasket 2 8 138091360181 Clamp 1 9 1188730187 Clamp 1 10 199000360408 Clamp 1 11 193760081 Angle 1 12 199100360174 Clamp 2 13 1280770028 Clamp 2 14 199100360234 Clamp 2 15 199...
read more
