BRAKE SYSTEM

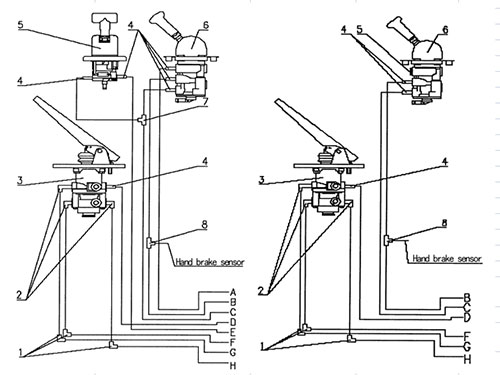

BRAKE MECHANISM IN CAB

2016-09-27 14:24:22



 NO. Part No. Part Name Quantity
1 190003559479 Nozzle 3
2 190003559946 Angle nozzle 3
3 WG9719360005 Service brake valve 1
4 190003559945 Nozzle 6
5 WG9719360030 Hand brake valve for trailer 1
5a Q617B16 Screw 1
6 WG9000360165 Hand brake valve 1
6/A WG9000360522 Hand brake valve 1
7 190003559483 Nozzle 1
8 WG99100360111 Nozzle 1
11 AZ9719360050 Combination bracket 1
12 AZ9719360051 Shaft 1
13 AZ9719360060 Bush 2
14 Q1840616 Screw 1
15 AZ9719360055 Brake foot pedal 1
16 WG9100710006 Brake lamp switch 1
17 AZ9123230226 Rubber cover 1
18 Q341B08 Nut 1
19 Q5002016 Split pin 1
20 AZ9719360063 Push rod 1
21 AZ9719360062 Bolt 1
22 Q173B0845 Screw 1
23 Q150B1016 Screw 7
24 Q351B14T15 Nut 2
25 AZ9123360067 Plug 1
