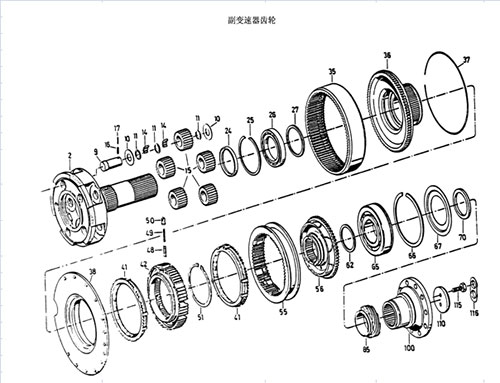

| NO. | Part No. | Part Name | Quantity |
| 2 | 2159232001（B） | Output shaft | 1 |
| 9 | 1269332036 | Planet wheel shaft | 5 |
| 10 | 501305887 | Washer | 1 |
| 11 | 730103846 | Intermediate disc | 10 |
| 14 | 735470057 | Needle roller | 15 |
| 15 | 1286332001 | Planet gear set | 1 |
| 16 | 631329048 | Slotted soring pin | 5 |
| 17 | 631329016 | Slotted soring pin | 5 |
| 24 | 730160759 | Distance ring | 1 |
| 25 | 769144049 | Snap ring set | 1 |
| 26 | 635330050 | Ball bearing | 1 |
| 27 | 769140072 | Spacer disc set | 1 |
| 35 | 1269332055 | Ring gear | 1 |
| 36 | 1269332054 | Intermed . Carrier | 1 |
| 37 | 730505053 | Locking wire | 1 |
| 38 | 2159233001（B） | Clutch body | 1 |
| 41 | 2159328002 | Synchronizer ring | 2 |
| 42 | 2159333004 | Synchronizer body | 1 |
| 48 | 732040386 | Compression spring | 6 |
| 49 | 732040385 | Compression spring | 6 |
| 50 | 1240304278 | Pressure piece | 6 |
| 51 | 769144037 | Locking ring set | 1 |
| 55 | 2159555001 | Sliding sleeve | 1 |
| 55/A | 2159333001 | Sliding sleeve | 1 |
| 56 | 2159333002 | Clutch body | 1 |
| 62 | 215955001 | Washer | 1 |
| 65 | 635333049 | Ball bearing | 1 |
| 66 | 630503020 | Snap ring | 1 |
| 67 | 1269328096 | Oil baffle plate | 1 |
| 70 | 730160758 | Distance ring | 1 |
| 85 | 1269328229 | Speedometer wore | 1 |
| 100 | 1096304011 | Output flange | 1 |
| 110 | 1240304117 | Wahser | 1 |
| 115 | 636016012 | Screw | 2 |
| 116 | 1250304353 | Locking plate | 1 |
