ZF 5S-150GP GEARBOX

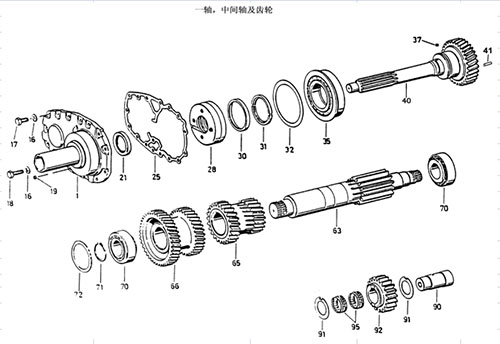

5S-150GP INOUTSHAFT,LAYSHAFT AND WHEELS

2016-09-27 13:31:06



 NO. Part No. Part Name Quantity
1 2159302003 Cover 1
1/A 2159302007 Cover 1
17 636015110 Srew 15
18 636015120 Screw 1
19 630361065 Plug 1
21 734310111 Shaft seal 1
25 1269302161 Gasket 1
28 1269202104 Pump 1
30 730061890 Locking ring 1
31 769145010 Spilt ring 1
32 0769140002(s) Shim (optional,clearance-0.00-0.10) 1
35 7217 Roller bearig 1
37 635470012 cylinoriacl roller 1
40 2159302006 Input shaft  1
40/A 2159302046 Input shaft  1
41 730061892 Tube 1
63 1292303004 Lay shaft 1
65 2159303002 Gear 1-2 gear 1
66 2159303003 Double gear 1
70 735370011 Roller bearig 1
71 769144033 Locking ring  1
72 1269140004 Spacer disc 1
90 1269305003 Reverse idler shaft 1
91 730150064 Spacer disc 2
92 1292305002 Reverse  idler gear 1
95 735320492 Needle roller bearing 2
