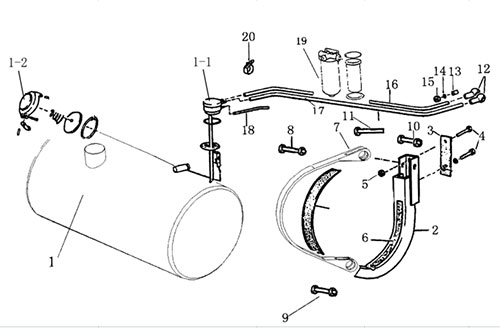

| NO. | Part No. | Part Name | Quantity |
| 1 | AZ9112550210 | 350L Fuel tank | 1 |
| 1/A | WG9725550006 | 400L Fuel al-tank | 1 |
| 1/1 | AZ9112550210-1 | 350L Fuel gauge | 1 |
| 1-1A | WG9625550131 | 400L Fuel gauge | 1 |
| 1/2 | WG9625550001 | Cover | 1 |
| 2 | AZ9112550220 | Support | 2 |
| 3 | 199112550128 | Plate | 2 |
| 4 | Q151B1650TF2 | Screw | 4 |
| 5 | 190003888627 | Nut | 4 |
| 6 | AZ9112550226 | Base | 2 |
| 6/A | WG9725550010 | Base(400L) | 2 |
| 7 | AZ9112550225 | Strap | 2 |
| 7/A | WG9725550009 | Strap(400L) | 2 |
| 8 | AZ9112550227 | Tension bolt | 2 |
| 9 | AZ9112550228 | Tension bolt | 2 |
| 10 | AZ9112550229 | Tension bolt | 2 |
| 11 | AZ9112550230 | Screw | 2 |
| 12 | WG9014230017 | Hose connector | 3 |
| 13 | 190003962621 | Female screw | 2 |
| 14 | Q72314T5F | Washer | 4 |
| 15 | Q33210 | Nut | 2 |
| 16 | AZ9112550120 | Suction line | 1 |
| 17 | AZ9112550120 | Return line | 1 |
| 18 | AZ9112550121 | Pipe | 1 |
| 19 | WG9725550002 | Fuel prefilter C | 1 |
| 1/19 | WG9725550002-1 | Prefilter element | 1 |
| 20 | 190003171697 | Cable binder | 6 |
| 20a | 1397 350169 | Angle | 1 |
| 20b | WG9100360134 | Clamp | 1 |
| 20c | Q340B06 | Nut | 1 |
| 20d | Q40106 | Washer | 1 |
| 40 | 61560110226 | Clip | 1 |
| 41 | 190003937830 | washer | 1 |
