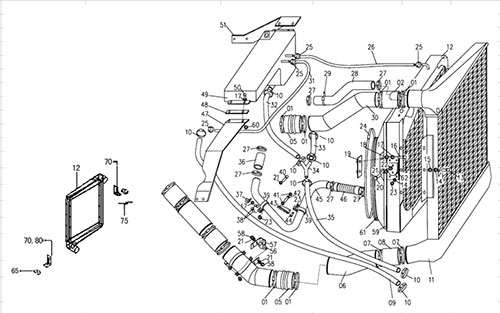

MATCHING PARTS FOR ENGINE
COOLING SYSTEM

2016-09-27 11:18:38



 NO. Part No. Part Name Quantity
1 190003989315 Clamp 10
2 WG9719530108 Hose 1
2/A WG9719530208 Hose 1
1/5 WG9719530107 Hose connector 2
5/A WG9719530207 Hose connector 1
6 612600120100 Pipe 1
7 612600120101 Air intake pipe part 1
8 WG9719530108 Hose 1
9 WG1620840060 Hose 1
10 190003989340 Clamp 8
11 WG9719530250 Aftercooler 1
12 WG9719530230 Radiator 1
12/A WG9719530231 Radiator 1
13 Q150B0816 Screw 6
14 Q40008 Washer 14
15 Q41208 Spring washer 6
16 Q150B0820 Screw 4
17 Q40308 Spring washer 9
18 Q40108 Waasher 4
19 AZ9716539001 Fastening sheet 2
20 Q150B1018 Screw 4
21 Q40310 Spring washer 9
22 Q40110 Washer 4
23 Q33208 Nut 10
24 190003989310 Clamp 1
25 190003989300 Clamp 4
26 WG9114530138 Hose 4
27 AZ9003980010 Clamp 6
28 WG9719530111 Inletwater pipe 1
28/A WG9719530116 Inletwater pipe 1
30 AZ9719530122 Outlet air pipe 1
30/A WG9719530123 Outlet air pipe 1
31 WG9114530139 Hose 1
31/A WG9725538236 Hose 1
32 WG9716530307 Hose 1
32/A WG9725538237 Hose 1
33 WG9716530305 Hose 1
33/A WG9725538235 Hose 1
34 AZ9716530510 Junction pipe 1
35 WG9112530451 Hose 1
36 WG9719530228 Hose 1
45 WG9719530212 Outlet water pipe 1
46 WG9719530227 Hose 1
46a AZ9716530505 Bracket 1
49 WG9719530260 Expansion tank 1
61 AZ9719530132 Shroud 1
61/A WG9719530132 Shroud 1
65 AZ9719530272 Rubber support 2
65/A WG9719530272 Rubber support 2
65a Q40010 Washer 8
65b Q40310 Spring washer 8
65c Q33210 Nut 8
70 AZ9719530201 Bracket left for radiator 1
70a AZ9719530202
