MATCHING PARTS FOR ENGINE
OPERATION DEVICE

2016-09-27 11:10:45



<
Contact Us
  • Phone: +86 531 6138 8377

    Fax: +86 531 6138 8177

  • Robert: 008618766172431

  • Email: sales@topleadzzl.com

  • Skype: roberttoplead

  • 5TH BUILDING ZONE2, NO.15 LAN XIANG ROAD, TIAN QIAO DISTRICT, JINAN, CHINA

Copyright © 2016 TOP LEAD INTERNATIONAL TRADING CO., LTD All Rights Reserved.

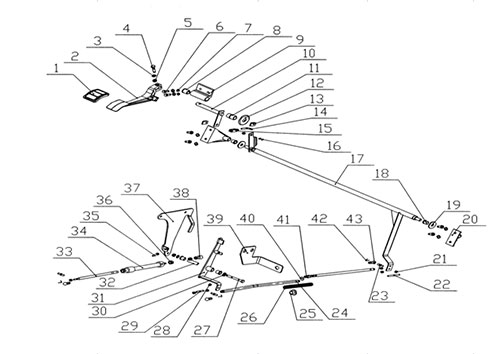

 NO. Part No. Part Name Quantity
1 WG9719570001 Rubber footboard 1
2 AZ9719570002 Pedal 1
3 Q40108 Washer 8
1/4 Q150B0835 Screw 1
1/5 Q340B08 Nut 3
6 Q150B0820 Screw 6
7 Q40308 Spring washer 2
1/8 AZ9719570006 Bush 1
9 AZ9719570007 Bracket 1
9A AZ9719570085 Stop block 1
10 WG9719570003 Control shaft 1
10/A WG9719570081 Control shaft 1
10A 1288 570057 Spring 1
1/11 AZ9719570008 Bush 1
12 WG9719570009 Rubber ring 1
13 AZ9719570012 Plastic clamp 2
14 AZ9719570011 Adjusting screw 1
15 190003964412 Fork head 1
16 Q43650 Snap ring 2
17 WG9719570015 Lever 1
18 AZ9719570023 Bush 4
19 Q40212 Washer 2
20 AZ9719570010 Bracket 2
21 Q340B06 Nut 8
22 AZ9719570051 Threaded bar 1
23 190003963313 Ball pivot 3
24 AZ9719570040 Brace rod 1
25 AZ9719570060 Sleeve 1
26 AZ9719570061 Spring 1
27 Q150B0870 Screw 1
27/A 199012570084 Bolt 2
27A Q40106 Washer 2
27B Q5002014 Split pin 1
28 Q33206 Nut 1
28/A Q350B06T15 Nut 2
29 AZ9719570052 Threaded bar 1
30 AZ9719570034 Rubber pad 1
30/A WG99014180012 Bush 1
31 AZ9719570029 Lever 1
31/A AZ9725570100 Lever 1
31A 199100570065 Spring 1
32 AZ9719570033 Spacer 1
33 199012570062 Threaded rod 1
34 WG9100570002 Operating cylinder 1
34/A WG9100570014 Operating cylinder 1
35 Q150B0625 Screw 1
36 Q340B10 Nut 1
37 AZ9719570026 Bracket 1
37/A AZ9719570073 Bracket 1
38 190003963623 Ball cup 1
38A 190003936514 Clip 1
38B Q340B08 Nut 1
39 AZ9719570062 Bracket 1
40 Q40206 Washer
