Dimensions :

DIMENSIONS
Tare weight		12000kg		Payload		60000kg
Overall Length	13000mm		Overall Width	3000mm	Overall height		1250mm

Specification :

SPECIFICATION
Chassis	Heavy duty and extra durability designed i beam；opting for high tensile steel Q345，welded by automatic subrnerged-Arc processes. Top plate 20mm.bottom plate 20mm.middle plate 14mm.height 500mm
Axle	Number	3	Brand	Optional upon choice	Capacity	13T
Suspension	Mechanical suspension Or air suspension
Leaf spring	Leaf spring or air bag
Floor	checkered plate
Tire	11.00R20，12.00R20，11R22.5，12R22.5，315/80R22.5 Tire optional
Wheel rim	8.5-20，9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice
Kingpin	2”/3.5”bolt-in king pin
Landing gear	JOST brand two-speed，manual operation，heavy duty landing gear
Ladder	Mechanical ladder
Vehicular applications	Machine transport
Braking system	WABCO RE6 relay valve；T30/30 sping brake chamber；40L air tanks
Painting	Complete chassis sand blasting to clean rust，1coat of anticorrosive prime，2coats of final paint
Accessories	One standard tool box

If you have any question or demand of trucks ,pls kindly contact us.

Email: Tracy@topleadzzl.com

Previous:

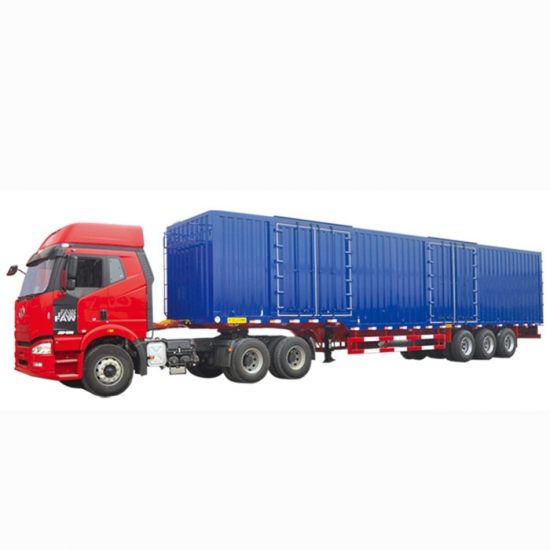

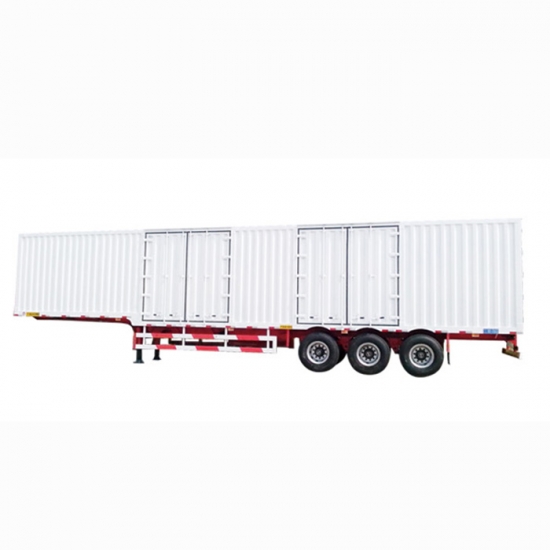

Box Semi Trailer
