2015-10-24 13:30:47
|

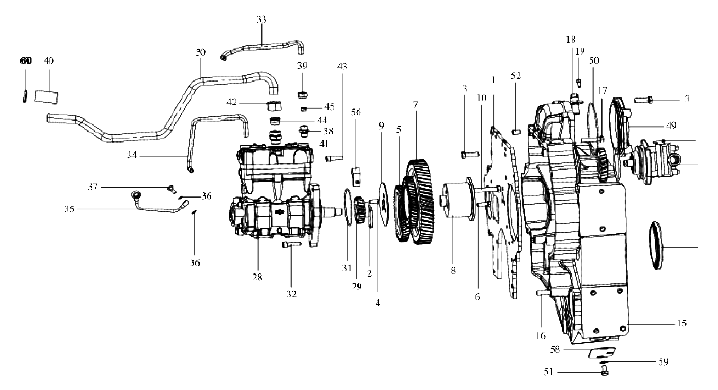

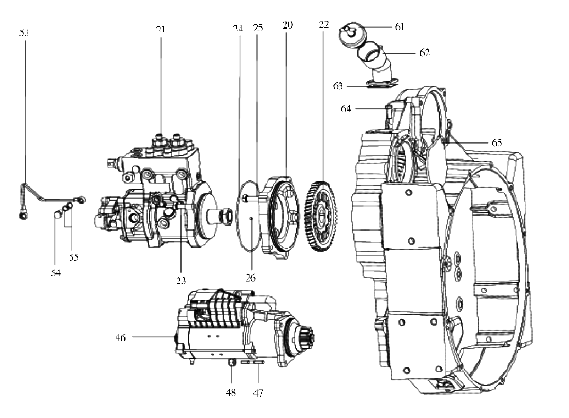

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
6.1263E+11 |
飞轮壳连接板 |
Flywheel housing connecting plate |
|
2 |
6.1263E+11 |
凸轮轴止推板 |
Camshaft thrust plate |
|
3 |
90003800619 |
六角头螺栓 |
Hexagon headed bolt |
|
4 |
90003802443 |
六角头螺栓 |
Hexagon headed bolt |
|
5 |
6.1263E+11 |
凸轮轴齿轮 |
Cam shaft gear |
|
6 |
90003802432 |
六角头螺栓 |
Hexagon headed bolt |
|
7 |
6.1263E+11 |
中间齿轮分总成 |
Middle gear assembly |
|
8 |
612630030019 |
中间齿轮轴 |
Intermediate gear shaft |
|
9 |
612630030020 |
惰轮挡板 |
Idler baffle |
|
10 |
612639000025 |
六角头螺栓 |
Hexagon headed bolt |
|
11 |
612630030005 |
液压泵 |
Hydraulic pump |
|
12 |
612630030027 |
液压泵齿轮 |
Hydraulic pump gear |
|
13 |
612630030045 |
O 型密封圈 |
O type sealing ring |
|
14 |
90003802419 |
六角头螺栓 |
Hexagon headed bolt |
|
15 |
612630030110 |
飞轮壳 |
Flywheel housing |
|
16 |
90011350063 |
六角头螺栓 |
Hexagon headed bolt |
|
17 |
90011350058 |
六角头螺栓 |
Hexagon headed bolt |
|
18 |
612630030007 |
转速传感器 |
Speed sensor |
|
19 |
90013050006 |
内六角圆柱柱螺钉 |
Internal six angle cylinder screw |
|
20 |
612630030023 |
喷油泵法兰 |
Injection pump flange |
|
21 |
612630030024 |
共轨喷油泵 |
Common rail injection pump |
|
22 |
612630030026 |
喷油泵齿轮 |
Fuel injection pump gear |
|
23 |
90003802532 |
六角头螺栓 |
Hexagon headed bolt |
|
24 |
612630030044 |
O 型密封圈 |
O type sealing ring |
|
25 |
90003802542 |
六角头螺栓 |
Hexagon headed bolt |
|
26 |
612639000065 |
六角头螺栓 |
Hexagon headed bolt |
|
27 |
612630030009 |
曲轴后油封 |
Crankshaft rear oil seal |
|
28 |
612630030047 |
双缸空气压缩机 |
Double cylinder air compressor |
|
29 |
612630030032 |
空压机齿轮 |
Air Compressor Gear |
|
30 |
612630030033 |
空压机进气管 |
Air compressor inlet pipe |
|
31 |
612639000039 |
O 型密封圈 |
O type sealing ring |
|
32 |
90013550004 |
圆柱头内六角螺栓 |
Cylinder head six angle bolt |
|
33 |
612630030034 |
空压机出水管 |
The air compressor outlet pipe |
|
34 |
612630030036 |
空压机进水管 |
Air compressor inlet pipe |
|
35 |
612630030037 |
双缸空村机机油管 |
Double cylinder empty village machine
tubing |
|
36 |
90003098010 |
密封垫圈 |
Sealing washer |
|
37 |
612630030055 |
空心螺栓 |
Hollow bolt |
|
38 |
612639000057 |
双管接头 |
Double joint |
|
39 |
612639000022 |
联接螺母 |
Union nut |
|
40 |
612630030038 |
进气管软管 |
Intake pipe hose |
|
41 |
612639000060 |
双管接头 |
Double joint |
|
42 |
612639000041 |
管接螺母 |
Pipe joint nut |
|
43 |
90003802532 |
||
|
44 |
