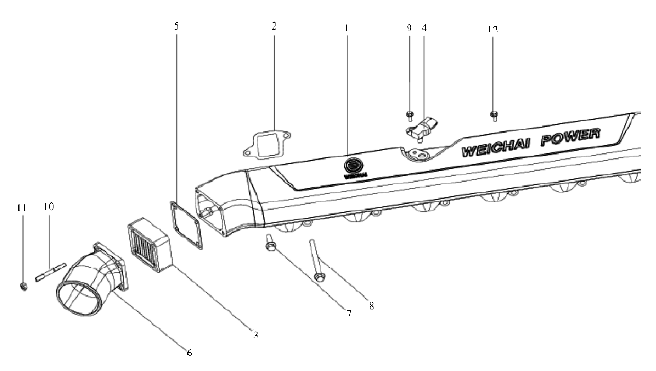

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
6.1263E+11 |
进气管 |
Intake pipe |
|
2 |
6.1263E+11 |
垫片 |
Shim |
|
3 |
6.1263E+11 |
加热器 |
Heater |
|
4 |
6.1263E+11 |
传感器 |
Sensor |
|
5 |
6.1263E+11 |
垫片 |
Shim |
|
6 |
6.1263E+11 |
进气接管 |
Inlet nozzle |
|
7 |
6.12639E+11 |
六角头螺栓 |
Hexagon headed bolt |
|
8 |
6.12639E+11 |
六角头螺栓 |
Hexagon headed bolt |
|
9 |
6.12639E+11 |
六角头螺栓 |
Hexagon headed bolt |
|
10 |
90003813470 |
双头螺栓 |
Stud bolt |
|
11 |
90003888451 |
2 型全金属六角锁紧螺母 |
Six type 2 corner locking nut |
|
12 |
90011250004 |
六角头螺栓 |
Hexagon headed bolt |
|

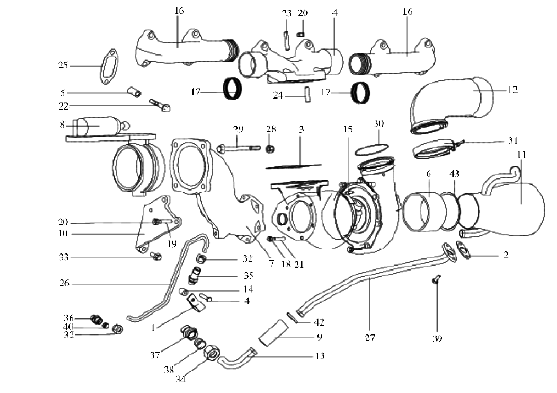

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
6.126E+11 |
单管夹子总成 |
Clamp assembly |
|
2 |
6.126E+11 |
回油管法兰垫片 |
Return line flange gasket |
|
3 |
6.1263E+11 |
增压器法兰垫片 |
Turbocharger flange gasket |
|
4 |
6.1263E+11 |
中间排气歧管 |
Middle exhaust manifold |
|
5 |
6.1263E+11 |
排气法兰套筒 |
Exhaust flange sleeve |
|
6 |
12630110006 |
连接软管 |
Connecting hose |
|
7 |
6.1263E+11 |
增压器后排气管 |
Rear exhaust pipe |
|
8 |
6.1263E+12 |
排气管制动 |
Exhaust pipe brake |
|
9 |
6.1263E+12 |
增压器回油连接软管 |
Connecting hose for turbocharger |
|
10 |
6.1263E+12 |
增压器支架 |
Turbocharger bracket |
|
11 |
6126300110012 |
压气机进气管组件 |
Compressor inlet pipe assembly |
|
12 |
6126300110014 |
中冷器连接管 |
Middle cooler connecting tube |
|
13 |
6126300110018 |
弯管 |
Elbow |
|
14 |
6126300110019 |
套筒 |
Sleeve |
|
15 |
6126300110020 |
增压器 |
Turbocharger |
|
|
6126300110143 |
增压器 |
Turbocharger |
|
|
6126300110258 |
增压器 |
Turbocharger |
|
16 |
6126300110022 |
前后排气歧管 |
Front and rear exhaust manifold |
|
17 |
6126300110024 |
密封环 |
Sealing ring |
|
18 |
6126300110037 |
六角螺母 |
Hexagon nut |
|
19 |
6126300110042 |
双头螺栓 |
Stud bolt |
|
20 |
6126300110043 |
六角螺母 |
Hexagon nut |
|
21 |
612630110044 |
双头螺栓 |
Stud bolt |
|
22 |
612630110045 |
六角头螺栓 |
Hexagon headed bolt |
|
23 |
612630110046 |
双头螺栓 |
Stud bolt |
|
