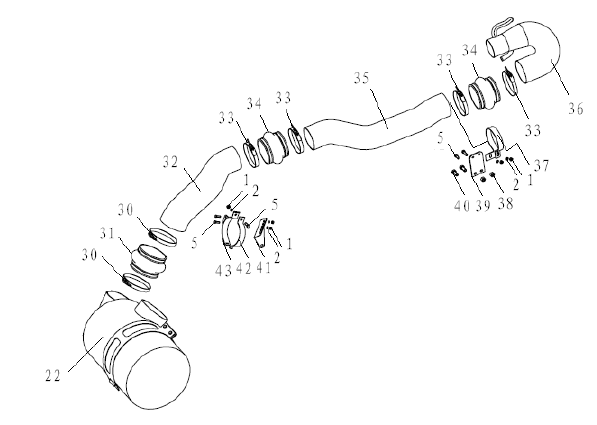

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
Q340B10 |
I 型六角螺母 |
Hex nut |
|
2 |
Q40310 |
弹簧垫片 |
Spring washer |
|
3 |
DZ9112190302 |
上垫板 |
Up plate |
|
4 |
DZ9112190301 |
蝴蝶支架 |
Bracket |
|
|
DZ9112196038 |
蝴蝶支架 |
Bracket |
|
5 |
Q150B1025 |
六角头螺栓 |
Hex screw |
|
6 |
Q2610830 |
六角头自攻锁紧螺钉 |
Locking screw |
|
7 |
348D 410007 |
橡胶金属软垫 |
Pad |
|
8 |
81.08201.6053 |
进气管带支架总成 |
Intake pipe assembly |
|
9 |
Q340B08 |
I 型六角螺母 |
Hex nut |
|
10 |
Q40308 |
弹簧垫圈 |
Spring washer |
|
11 |
81.96210.0289 |
缓冲块 |
Cushion block |
|
12 |
Q1290850 |
双头螺栓 |
Stud |
|
13 |
81.08240.0215 |
扁管托架 |
Bracket |
|
|
DZ9112196034 |
扁管托架 |
Bracket |
|
14 |
Q2610810 |
六角头自攻锁紧螺钉 |
Screw |
|
15 |
Q150B0820 |
六角头螺栓 |
Hex screw |
|
16 |
81.08240.0213 |
支架 |
Bracket |
|
|
DZ9112190134 |
支架（四） |
Bracket（Four） |
|
17 |
81.08240.0214 |
L 型支架 |
L shape bracket |
|
|
DZ9112190135 |
支架（五） |
Bracket（Five） |
|
18 |
Q2610810 |
六角头自攻锁紧螺钉 |
Screw |
|
19 |
DZ9003980001 |
卡箍 |
Clip |
|
20 |
DZ9118190191 |
进气扁管波纹接管 |
Screw pipe |
|
21 |
DZ9118190190 |
空滤器连接管总成 |
Hose |
|
|
DZ9112196032 |
空滤器接管 |
Hose |
|
|
DZ9118190110 |
空滤器接管 |
Hose |
|
|
DZ9112190600 |
空滤器接管 |
Hose |
|
22 |
DZ9112190328 |
空滤器总成 |
Air cleaner |
|
23 |
DZ9118190231 |
空滤器上固定夹 |
Bracket (upper) |
|
24 |
Q150B1630 |
六角头螺栓 |
Hex screw |
|
25 |
Q150B1430 |
六角头螺栓 |
Hex screw |
|
26 |
Q33214 |
2 型全金属六角锁紧螺母 |
Hex. nut |
|
27 |
Q33216 |
2 型全金属六角锁紧螺母 |
Hex. nut |
|
28 |
DZ9112190178 |
空滤器托架 |
Bracket |
|
|
DZ9118190387 |
空滤器托架 |
Bracket |
|
|
DZ9112190175 |
空滤器托架 |
Bracket |
|
