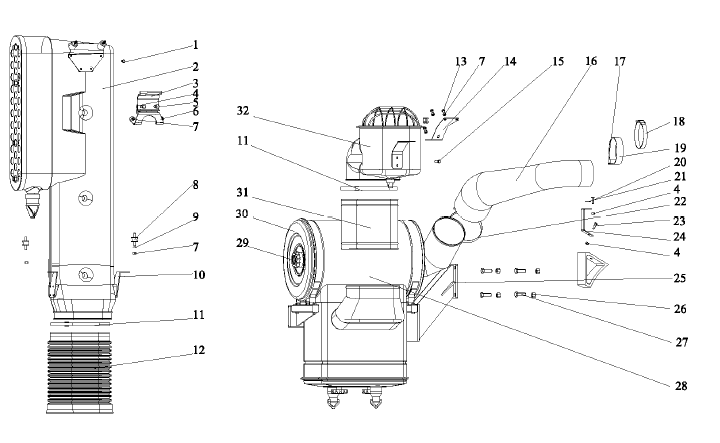

AIR CLEANING DEVICE
WP10 84 TRUCK ENGINE AIR CLEANING DEVIE

2015-10-24 11:50:00

NO.

Part No.

Chinese Name

Part Name

1

Q2610816

六角头自攻锁紧螺钉

Screw

2

DZ93259190005

进气管带支架总成

Intake pipe assembly

3

81.62940.5011

支架

Bracket

4

Q33210

II 型全金属六角锁紧螺母

Hex. nut

5

Q150B1040

六角头螺栓

Hex screw

6

DZ9112196038

蝴蝶支架总成

Bracket

7

Q340B08

I 型六角螺母

Hex nut

8

81.96210.0289

缓冲块

Cushion block

9

Q40308

弹簧垫圈

Spring washer

10

DZ9112196034

扁管托架

Bracket

11

DZ9114190934

卡箍(中)

Clip

12

DZ93259190006

波纹管总成

Screw pipe

13

Q150B0820

六角头螺栓

Hex screw

14

DZ9112190134

支架(四)

Bracket

15

Q2610860

六角头自攻锁紧螺钉

Screw

16

DZ9112190078

空滤器软管

Hose

17

1.991E+11

隔环

Partition ring

18

DZ9003532122

T 型卡箍

Clip

19

1.99112E+11

软管卡箍

Tube clip

20

Q150B1020

六角头螺栓

Hex screw

21

Q40310

弹簧垫圈

Spring washer

22

DZ9003532166

T 型卡箍

Clip

23

Q150B1030

六角头螺栓

Hex screw

24

DZ9112190055

夹板

Plywood

25

DZ9112196033

垫板

Plate

26

Q33214

II 型全金属六角锁紧螺母

Hex. nut

27

Q150B1450

六角头螺栓

Hex screw

28

DZ93319190011

沙漠空滤器总成

Air cleaner

29

1.612E+11

干式空滤器堵塞开关

Stopper switch

30

1.69101E+11

保护罩

Protect cover

31

DZ93259190011

进气胶管

Hose

32

DZ93259190009

底座总成

Pedestal assembly
