AIR CLEANING DEVICE

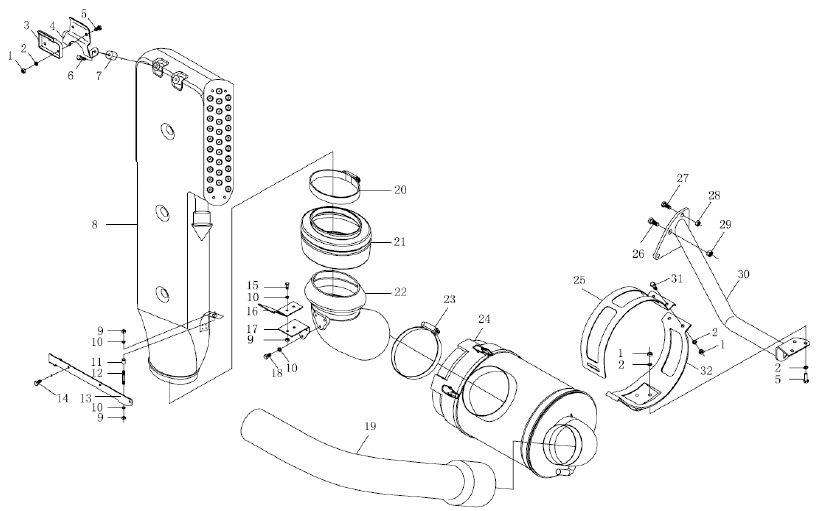

WP10 ENGINE 42 TRACTOR AIR CLEANING DEVICE

2015-10-24 11:52:17

NO.

Part No.

Chinese Name

Part Name

1

Q340B10

I 型六角螺母

Hex nut

2

Q40310

弹簧垫片

Spring washer

3

DZ9112190302

上垫板

Up plate

4

DZ9112190301

蝴蝶支架

Bracket

5

Q150B1025

六角头螺栓

Hex screw

6

Q2610830

六角头自攻锁紧螺钉

Locking screw

7

81.96210.0387

变速器橡胶支承块

Pad

8

81.08201.6053

进气管带支架总成

Intake pipe assembly

9

Q340B08

I 型六角螺母

Hex nut

10

Q40308

弹簧垫圈

Spring washer

11

81.96210.0289

缓冲块

Cushion block

12

Q1290850

双头螺栓

Stud

13

81.08240.0215

扁管托架

Bracket

14

Q2610810

六角头自攻锁紧螺钉

Screw

15

Q150B0820

六角头螺栓

Hex screw

16

DZ9112190213

支架

Bracket

17

DZ9112190121

L 型支架

L shape bracket

18

Q2610810

六角头自攻锁紧螺钉

Screw

19

DZ9112190102

成型进气管

Air hose pipe

20

DZ9003980001

卡箍

Clip

21

DZ9118190191

进气扁管波纹接管

Screw pipe

22

DZ9118190190

空滤器连接管总成

Hose

23

DZ9003532166

T 型卡箍

Clip

24

DZ9118190230

空滤器总成

Air cleaner

25

DZ9118190231

空滤器上固定夹

Bracket (upper)
