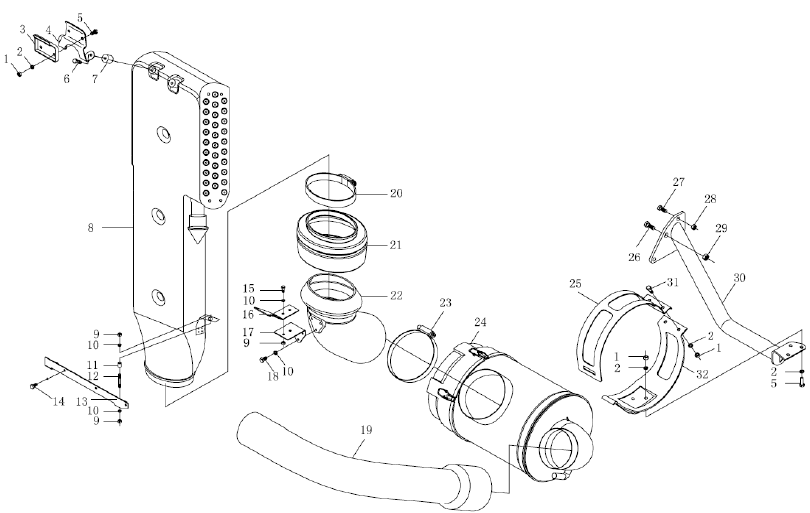

Part No. |
Chinese Name |
Part Name |
|
1 |
Q340B10 |
I 型六角螺母 |
Hex nut |
|
2 |
Q40310 |
弹簧垫片 |
Spring washer |
|
3 |
DZ9112190302 |
上垫板 |
Up plate |
|
4 |
DZ9112190301 |
蝴蝶支架 |
Bracket |
|
5 |
Q150B1025 |
六角头螺栓 |
Hex screw |
|
6 |
Q2610830 |
六角头自攻锁紧螺钉 |
Locking screw |
|
7 |
81.96210.0387 |
变速器橡胶支承块 |
Pad |
|
8 |
81.08201.6053 |
进气管带支架总成 |
Intake pipe assembly |
|
9 |
Q340B08 |
I 型六角螺母 |
Hex nut |
|
10 |
Q40308 |
弹簧垫圈 |
Spring washer |
|
11 |
81.96210.0289 |
缓冲块 |
Cushion block |
|
12 |
Q1290850 |
双头螺栓 |
Stud |
|
13 |
81.08240.0215 |
扁管托架 |
Bracket |
|
14 |
Q2610810 |
六角头自攻锁紧螺钉 |
Screw |
|
15 |
Q150B0820 |
六角头螺栓 |
Hex screw |
|
16 |
DZ9112190213 |
支架 |
Bracket |
|
17 |
DZ9112190121 |
L 型支架 |
L shape bracket |
|
18 |
Q2610810 |
六角头自攻锁紧螺钉 |
Screw |
|
19 |
DZ9112190102 |
成型进气管 |
Air hose pipe |
|
20 |
DZ9003980001 |
卡箍 |
Clip |
|
21 |
DZ9118190191 |
进气扁管波纹接管 |
Screw pipe |
|
22 |
DZ9118190190 |
空滤器连接管总成 |
Hose |
|
23 |
DZ9003532166 |
T 型卡箍 |
Clip |
|
24 |
DZ9118190230 |
空滤器总成 |
Air cleaner |
|
25 |
DZ9118190231 |
空滤器上固定夹 |
Bracket (upper) |
|
26 |
Q150B1630 |
六角头螺栓 |
Hex screw |
|
27 |
Q150B1430 |
六角头螺栓 |
Hex screw |
|
28 |
Q33214 |
II 型全金属六角锁紧螺母 |
Hex. nut |
|
29 |
Q33216 |
II 型全金属六角锁紧螺母 |
Hex. nut |
|
30 |
DZ9112190175 |
空滤器托架 |
Bracket |
|
31 |
Q150B1030 |
六角头螺栓 |
Hex. screw |
|
32 |
DZ9118190232 |
空滤器下固定夹 |
Bracket(lower) |
