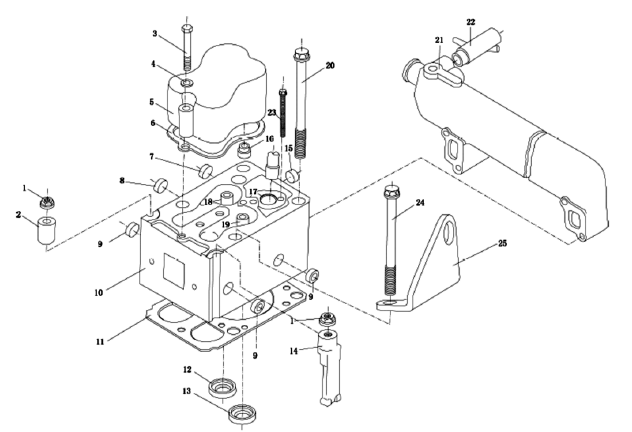

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
61200040034 |
带肩螺母 |
Shoulder nut |
|
2 |
61200040023 |
夹紧块 |
Clamping block |
|
3 |
90003800466 |
六角头螺栓 |
Hexagon headed bolt |
|
4 |
90003932023 |
波形弹性垫圈 |
Wave spring washer |
|
5 |
6.126E+11 |
气缸盖罩 |
Cylinder cover |
|
6 |
61404002l |
气缸盖罩衬垫 |
Cylinder head cover gasket |
|
7 |
90003989277 |
碗形塞片 |
Bowl plug piece |
|
8 |
90003989721 |
碗形塞片 |
Bowl plug piece |
|
9 |
90003989294 |
碗形塞片 |
Bowl plug piece |
|
10 |
6.126E+11 |
气缸盖 |
The cylinder cover |
|
11 |
61500040049 |
气缸盖衬垫 |
Cylinder head gasket |
|
12 |
61560040057 |
进气门座 |
Intake valve seat |
|
13 |
81560040037 |
排气门座 |
Exhaust valve seat |
|
14 |
61200040027 |
夹紧块 |
Clamping block |
|
15 |
90003989725 |
碗形塞片 |
Bowl plug piece |
|
16 |
612600040114 |
气门阀杆密封套 |
Valve stem seal sleeve |
|
17 |
612600040235 |
喷油器衬套 |
Injector bushing |
|
18 |
612600040113 |
气门导管 |
Valve guide |
|
19 |
61500040014 |
排气门弹簧下座 |
Exhaust valve spring |
|
20 |
61500040023 |
气缸盖主螺栓 |
Cylinder head bolt |
|
21 |
612600040241 |
出水管 |
Outlet pipe |
|
22 |
61500060045 |
管接头组件 |
Pipe joint assembly |
|
23 |
90013550006 |
六角头螺栓 |
Hexagon headed bolt |
|
90013550007 |
六角头螺栓 |
Hexagon headed bolt |
|
|
24 |
612600040253 |
气缸盖主螺栓 |
Cylinder head bolt |
|
25 |
612600040238 |
吊板 |
Hanging plate |
