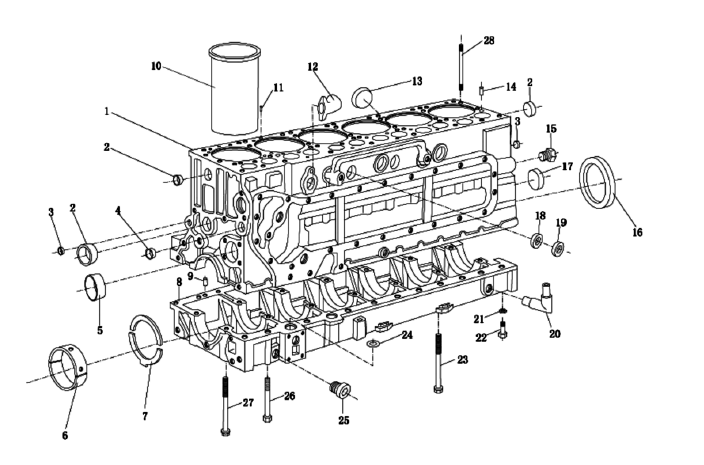

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
612600011729 |
气缸体 |
Cylinder block |
|
2 |
90003982121 |
碗形塞 |
Bowl plug |
|
3 |
90003989480 |
碗形塞 |
Bowl plug |
|
4 |
90003989204 |
碗形塞 |
Bowl plug |
|
5 |
61560010029 |
凸轮轴衬套 |
Cam shaft bushing |
|
|
612600010990 |
凸轮轴衬套 |
Cam shaft bushing |
|
6 |
81500010046 |
主轴瓦(付) |
Main shaft tile (pay) |
|
7 |
81500010125 |
止推片(付) |
Thrust sheet (pay) |
|
8 |
61500010366 |
曲轴箱 |
Crankcase |
|
9 |
90003901604A |
圆柱销 |
Cylindrical pin |
|
10 |
61500010344 |
气缸套 |
Cylinder sleeve |
|
11 |
90003909626 |
弹性圆柱销 |
Elastic cylindrical pin |
|
12 |
614010279 |
通风弯管 |
Vent pipe |
|
13 |
90003989210 |
碗形塞 |
Bowl plug |
|
14 |
90003901604 |
圆柱销 |
Cylindrical pin |
|
15 |
61460070011 |
主油道后螺塞 |
The main oil channel after plug |
|
16 |
61500010100 |
后油封 |
Rear oil seal |
|
17 |
90003989288 |
碗形塞 |
Bowl plug |
|
18 |
90003989289 |
碗形塞 |
Bowl plug |
|
19 |
90003989215 |
碗形塞 |
Bowl plug |
|
20 |
612600070097 |
回油弯管 |
Return oil pipe |
|
21 |
188250083 |
自锁垫圈 |
Self lock washer |
|
22 |
90003862428 |
圆柱头内六角螺钉 |
Six angle screw in cylinder head |
|
23 |
614010217 |
主轴承螺栓 |
Main bearing bolt |
|
24 |
81400010032 |
密封圈 |
Sealing ring |
|
25 |
90003962050 |
内六角螺塞 |
Inner six angle plug |
|
26 |
90003802493 |
六角头螺栓 |
Hexagon headed bolt |
|
27 |
614010114 |
主轴承螺栓 |
Main bearing bolt |
|
28 |
61500010185 |
气缸盖螺栓 |
Cylinder head bolt |
|

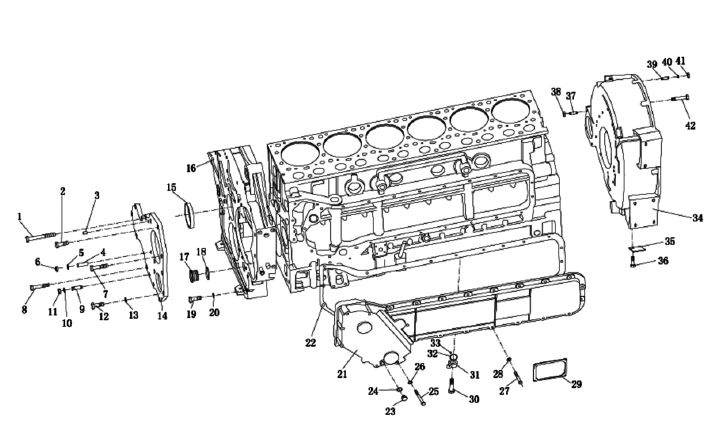

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
90003800571 |
六角头螺栓 |
Hexagon headed bolt |
|
2 |
90003802523 |
六角头螺栓 |
Hexagon headed bolt |
|
3 |
90003901604 |
圆柱销 |
Cylindrical pin |
|
4 |
90003813429 |
圆柱销 |
Cylindrical pin |
|
5 |
90003932023 |
波形圆柱垫圈 |
Wave cylindrical washer |
|
6 |
90003871252 |
I 型六角头螺母 |
