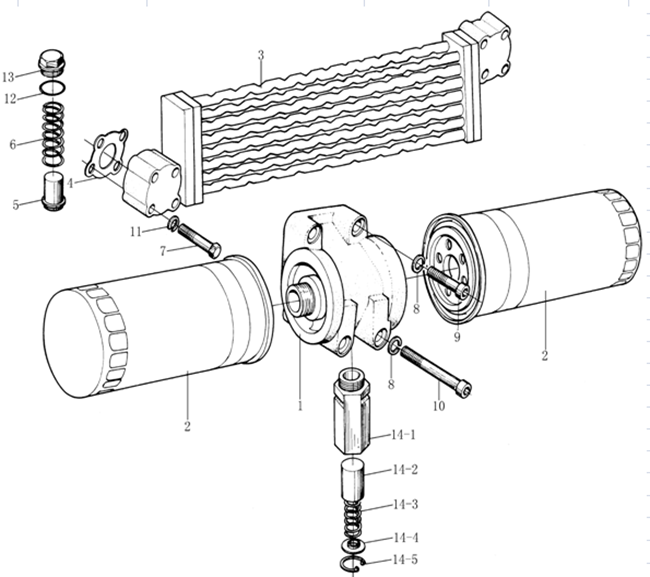

| NO. | Part No. | Part Name | Quantity |
| 1 | VG1500070051 | Filter head | 1 |
| 2 | VG61000070005 | Filter | 2 |
| 3 | VG1500010334 | Oil radiator | 1 |
| 4 | VG1400010032 | Sealing ring | 2 |
| 5 | VG14070069 | Valve cone | 1 |
| 6 | VG14070068 | Spring | 1 |
| 7 | 190003862419 | Screw | 4 |
| 8 | 190003932023 | Spring washer | 4 |
| 9 | 190003862443 | Screw | 2 |
| 10 | 190003862482 | Screw | 2 |
| 11 | 190003932023 | Gasket | 8 |
| 12 | VG2600010735 | Gasket | 1 |
| 13 | 190003962051 | Screw | 1 |
| 14 | VG1500070097 | Discharging valve C | 1 |
| 1/14 | AZ1500070096 | Valve body | 1 |
| 2/14 | 407 070032 | Piston | 1 |
| 3/14 | 407 070034 | Spring | 1 |
| 4/14 | 4139070059 | Spring sopport | 1 |
| 5/14 | AZ90003930012 | Circlip | 1 |
