DRIVER CAB

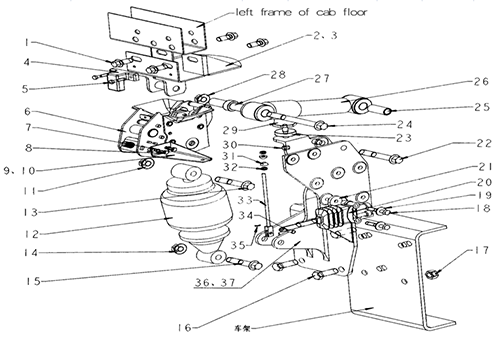

REAR SUSPENSION OF DRIVER’S CAB

2016-09-27 14:25:17



 NO. Part No. Part Name Quantity
1 Q1841230 Screw 8
2 WG1642440040 Above bracket left 1
3 WG1642440041 Above bracket right 1
4 WG1642440052 Sensor for cab lock 2
5 Q150B0630 Screw 4
6 WG1642440101 Hyd.lock 2
7 Q40306 Spring washer 4
8 Q150B0610 Screw 4
9 WG1642440055 Left bracket 1
10 WG1642440056 Right bracket 1
11 Q33014 Nut 2
12 AZ1642440025 Shock absorber 2
12/A WG1642440085 Shock absorber 2
13 Q1841480 Screw 2
14 Q33014 Nut 2
15 Q1841470 Screw 2
15/A Q1841480 Screw 2
16 Q151B1445 Screw 8
17 190003888458 Nut 8
18 Q150B0850 Screw 4
19 Q40208 Washer 4
20 WG1642440051 Height control valve 2
21 AZ1642440035 Plate 2
22 Q1841490 Screw 2
22/A Q18414100 Screw 2
24 Q18414140 Screw 2
25 AZ1642440032 Bush 2
26 AZ1642440021 Stabilizer 2
27 AZ1642440031 Bush I 2
28 Q33014 Nut 2
29 WG1642430081 Stop 2
30 Q340B10 Nut 2
31 AZ1642430036 Ball washer 4
32 Q340B06 Nut 8
34 Q5100614 Bolt 2
35 Q5002012 Split pin 2
36 AZ1642440011 Bottom bracket left 1
37 AZ1642440012 Bottom bracket right 1
38 WG1642440070 T-nozzle 1
39 WG1642440072 Hose 1
40 WG1642430033 Guide 1
41 WG1642430035 Brace rad I 1
43 WG1642430086 Nozzle 1
44 AZ1642430030 Above base for air spring 2
45 AZ1642430034 Connecting rod 1
48 AZ1642930061 Plate with nut 2
