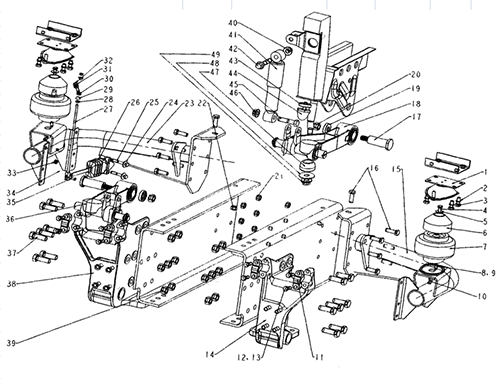

| FRONT SUSPENSION OF DRIVER’S CAB/驾驶室前悬置 | |||
| D NO. | Part No. | Part Name | Quantity |
| 1 | AZ1642430125 | Above base for screwy spring | 2 |
| 2 | Q40310 | Spring washer | 8 |
| 3 | Q150B1025 | Screw | 8 |
| 6 | AZ1642430116 | Washer | 2 |
| 7 | WG1642430117 | Spring | 2 |
| 8 | Q40308 | Spring washer | 2 |
| 9 | Q150B0820 | Screw | 2 |
| 11 | AZ1642430043 | Cover | 4 |
| 11/A | AZ1642430235 | Cover | 2 |
| 12 | Q40312 | Spring washer | 8 |
| 13 | Q150B1235 | Screw | 8 |
| 13/A | Q150B1245 | Screw | 4 |
| 14 | AZ1642430041 | Front support left | 1 |
| 14/A | AZ1642430231 | Front support left | 1 |
| 14A | AZ1642430263 | Plastic bush | 1 |
| 15 | AZ1642430110 | Bottem spring bracket left | 1 |
| 16 | Q151C1235 | Screw | 14 |
| 17 | AZ1642430071 | Screw | 2 |
| 18 | AZ1642430051 | Left swing arm | 1 |
| 18/A | AZ1642430219 | tilting equipment of cab | 1 |
| 19 | WGWG1642430072 | Washer | 2 |
| 20 | 190003888459 | Nut | 2 |
| 21 | 190003888457 | Nut | 2 |
| 22 | 190003888457 | Nut | 2 |
| 23 | WG1642430120 | Bottem spring bracket left | 1 |
| 24 | Q40208 | Washer | 2 |
| 36 | AZ1642430052 | Right swing arm | 1 |
| 37 | Q151B1645 | Screw | 14 |
| 38 | AZ1642430042 | Front support right | 1 |
| 38/A | AZ1642430232 | Front support right | 1 |
| 38A | AZ1642430263 | Plastic bush | 1 |
| 39 | 190003888459 | Nut | 14 |
| 40 | Q33014 | Nut | 2 |
| 40/A | Q33414 | Nut | 2 |
| 41 | AZ1642430091 | Shock absorber | 2 |
| 41/A | WG1642430285 | Shock absorber | 2 |
| 41A | AZ1642430265 | T' bush | 2 |
| 42 | Q1841470 | Nut | 2 |
| 42/A | Q150B1485 | Screw | 2 |
| 43 | AZ1642430082 | Washer | 2 |
| 44 | WG1642430081 | Spring stop | 2 |
| 44/A | AZ1642430083 | Spring stop | 2 |
| 44A | AZ1642430239 | Axle | 2 |
| 45 | Q150B1460 | Screw | 2 |
