STR REAR DRIVE AXLE

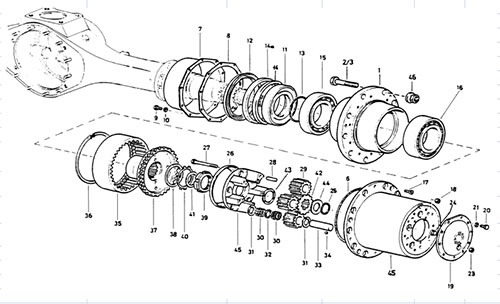

PLANETARY DRIVE

2016-09-27 13:46:11

NO.	Part No.	Part Name	Quantity
0	199112340010	Rear wheel hub C(incl.1,2)	2
1	WG9112340009	Rear wheel hub	2
2	WG9112340123	Wheet bolt	10
3	WG9112340123	Wheet bolt	10
6	WG9012340029	Gasket	2
7	WG9012340021	Oil drip pan	2
8	WG9012340020	Gasket	2
9	Q150B0816	Screw	20
10	Q40308	Spring washer	20
11	199012340019	Spacer ring	2
11/A	WG9012340017	Spacer ring	2
12	199012340018	Oil drip pan	2
13	199012340027	Gasket	2
14	WG9112340113	Gasket	2
14A	WG9112340114	Gasket	2
15	190003326067	Roller bearing	2
16	190003326167	Roller bearing	2
17	Q2541025	Screw	2
18	190003961309	Screw	2
19	WG9112340001	Cover	2
20	Q150B1020Q	Screw	20
20/A	Q150B1018	Screw	20
21	Q40310	Spring washer	20
23	190003098026	Gasket	2
24	WG9012340011	Bolt	2
25	190003933351	Circlip	2
26	WG880420027	Oil drip pan	2
27	Q151C1295TF2	Screw	10
28	190003901704	Cyl.pin	10
29	WG9012340122	Bevel pinion	10
30	WG99-934-013	Needle	20
31	WG9012340075	Washer	20
32	WG9012340077	Washer	10
33	WG9012340004	Bolt	10
34	190003330148	Bolt	10
35	WG9012340121	Intermed.ring gear	2
36	WG880420014	Srap ring	2
37	WG9112340021	Support for intermed.ring gear	2
38	WG880420034	Ring	2
39	WG680340013	Nut	2
40	WG680340015	Securing sheet	2
41	WG680340016	Shim	nb
41	WG680340187	Shim	nb
41	WG680340186	Shim	nb
41	WG680340017	Shim	nb
41	WG680340018	Shim	nb
41	WG680340019	Shim	nb
42	WG9012340005	Helical gear	2
43	WG9012340076	Stop washer	2
44	WG880 410097	Washer	2
45	199112340029	Planetary carrier	2
46	WG9003884160	Nut	20
