2016-09-27 13:11:52

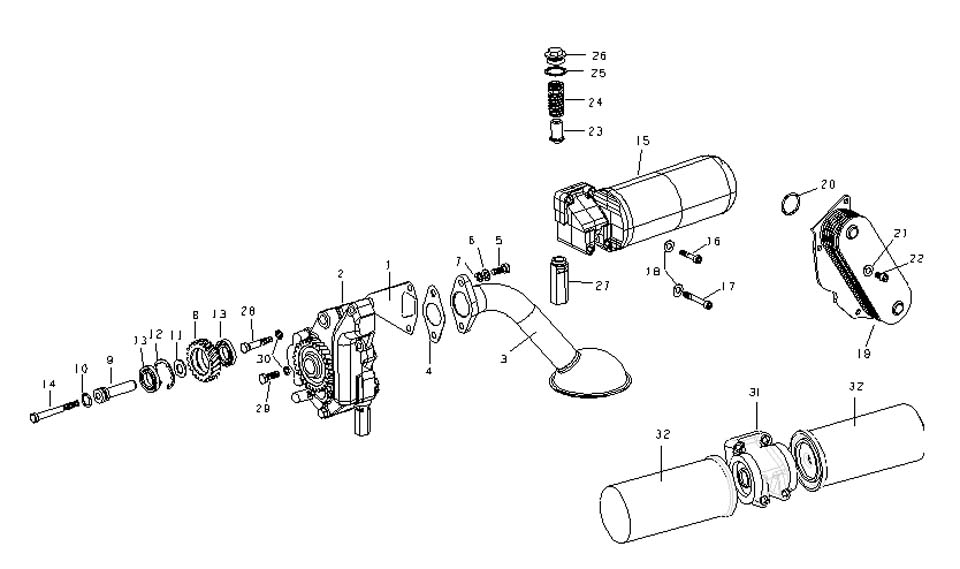

| NO. | Part no | Part Name | Chinese name |
| 1 | VG14070055 | Gasket | 机油泵垫片 |
| 2 | VG1500070021 | Oil pump ass | 45mm机油泵总成 |
| 3 | VG1800070051 | Strainer | 集滤器总成 |
| VG1800070052 | |||
| 4 | VG140778 | Washer | 垫片 |
| 5 | 90003802523 | Bolt | 六角头螺栓 |
| 6 | 90003930271 | Washer | 垫片 |
| 7 | 90003931122 | Spring washer | 弹簧垫圈 |
| 8 | VG14070061 | Gear | 机油泵中间齿轮 |
| 9 | VG14070056 | Gear axle | 中间齿轮轴 |
| 10 | VG14070155 | O-ring | 密封圈 |
| 11 | VG14070049 | Intermediate ring | 中间隔圈 |
| 12 | 90003934732 | Ring | 带凸齿的孔用挡圈 |
| 13 | 90003311410 | Angular ball bearing | 向心球轴承 |
| 14 | 90003802578 | Bolt | 六角头螺栓 |
| 15 | VG1540070005 | Oil filter ass | 机油滤清器总成 |
| 16 | 90003862443 | Socket bolt | 内六角圆柱头螺钉 |
| 17 | 90003862482 | Socket bolt | 内六角圆柱头螺钉 |
| 18 | 90003932023 | Spring washer | 波形弹性垫圈 |
| 19 | VG1500010334 | Oil cooler | 机油冷却器（8片） |
| VG1500010335 | |||
| 20 | VG1400010032 | Gasket | 密封圈 |
| 21 | 90003862419 | Socket bolt | 内六角圆柱头螺钉 |
| 22 | 90003932023 | Spring washer | 波形弹性垫圈 |
| 23 | VG14070069 | Safety valve | 安全阀 |
| 24 | VG14070068 | Safety valve spring | 安全阀弹簧 |
| 25 | VG2600010735 | Gasket | 复合垫圈 |
| 26 | 90003962051 | Socket bolt | 内六角头螺塞 |
| 27 | VG1500070097 | Pressure limit valve | 主油道限压阀总成 |
| 28 | 90003800551 | Bolt | 六角头螺栓 |
| 29 | 90003802527 | Bolt | 六角头螺栓 |
| 30 | 90003931122 | Spring washer | 弹簧垫圈 |
| 31 | VG1500070051 | Oil filter body | 机油滤清器底座组件 |
| 32 | VG61000070005 | Oil filter | 旋装式机油滤芯总成 |
