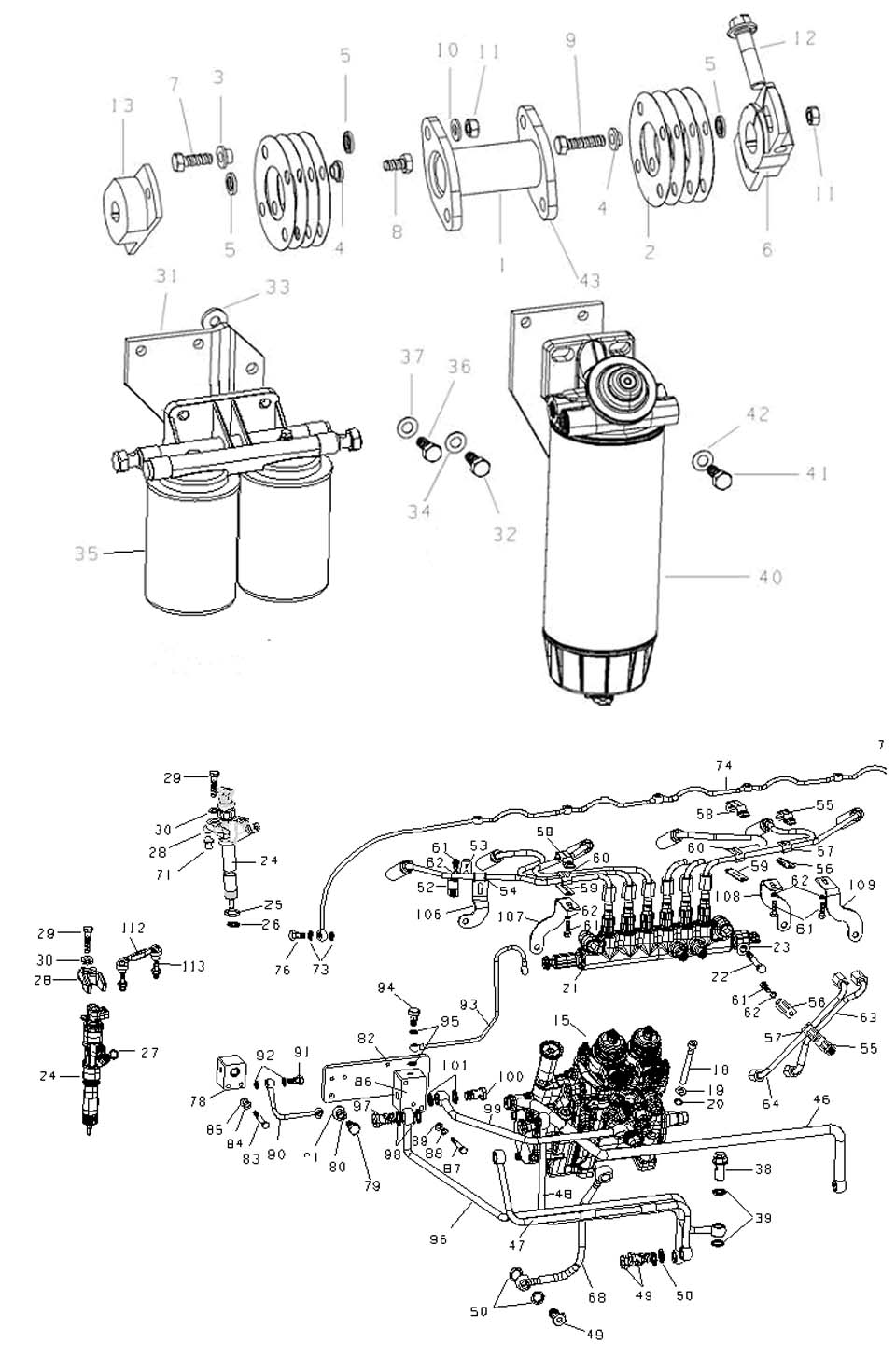

| NO. | Part no | Part Name | Chinese name |
| 1 | VG1540080299 | Coupling flange | 联轴器法兰组件 |
| 2 | VG1540080004B | Spring sheets | 弹性连接片 |
| 3 | VG1540080295 | Bush | 衬套 |
| 4 | VG1540080296 | Bush | 衬套 |
| 5 | VG1540080007B | Washer | 垫圈 |
| 6 | VG1540080293 | Injection adjusting block | 角度调节板 |
| 7 | 90003802544 | Bolt | 六角头螺拴 |
| 8 | 90003802513 | Bolt | 六角头螺拴 |
| 9 | 90003802536 | Bolt | 六角头螺拴 |
| 10 | VG1540080297 | Washer | 垫圈 |
| 11 | 90003871308 | Nut | 六角螺母 |
| 12 | VG1500089018 | Bolt | 六角法兰面螺栓 |
| 13 | VG1540080292A | Flange | 法兰 |
| 14 | R61540080311 | Nut | 紧固螺母 |
| 15 | R61540080101 | Injection pump | 供油泵 |
| 16 | R61540080312 | Woodruff key | 半圆键 |
| 17 | 90014350010 | Spring washer | 弹簧垫圈 |
| 18 | VG1540080091 | Socket bolt | 内六角圆柱头螺钉 |
| 19 | 90003930261 | Washer | 平垫圈 |
| 20 | VG188250083 | Washer | 自锁垫圈 |
| 21 | R61540080016 | Rail | 共轨组件 |
| 22 | 90003802455 | Bolt | 六角头螺拴 |
| 23 | 90003932023 | Spring washer | 波形弹性垫圈 |
| 24 | VG1096080010 | Fuel injector ass | 喷油器总成 |
| R61540080017A | |||
| 25 | VG1096080003 | O-ring | 喷油器密封圈 |
| VG1540080018A | |||
| 26 | VG1540080019B | Washer | 喷油器垫圈 |
| 27 | VG1540080095 | O-ring | 密封圈 |
| 28 | VG1096080021 | Injector clamp | 喷油器压紧块 |
| VG1540080021C | |||
| 29 | Q150B0840TF2 | Bolt | 六角头螺拴 |
| Q150B0835TF2 | |||
| 30 | VG1540080024 | Spherical washer | 球面垫圈 |
| 31 | VG1540080126 | Bracket | 燃油滤托架 |
| 32 | 90003802523 | Bolt | 六角头螺拴 |
| 33 | 90003930012 | Washer | 大垫圈 |
| 34 | 90003932024 | Spring washer | 波形弹性垫圈 |
| 35 | VG1540080030A | Fuel filter | 燃油精滤清器组合件 |
| 36 | 90003802527 | Bolt | 六角头螺栓 |
| 37 | 90003931122 | Washer | 弹簧垫圈 |
| 38 | VG1540080022 | Overflow valve | 柴滤溢油阀 |
| 39 | VG2600080200 | Washer | 密封垫圈 |
| 40 | VG1540080132A | Fuel filter | 燃油粗滤清器组合件 |
| 41 | 90003802523 | Bolt | 六角头螺栓 |
| 42 | 90003931122 | Spring washer | 弹簧垫圈 |
| 43 | VG1540080300 | Coupling | 联轴器总成 |
| 44 | 90003962621 | Bolt | 空心螺栓A8 M14×1.5 |
| 45 | VG2600080200 | Washer | 密封垫圈 |
| 46 | VG1099089156 | Hose | 输油泵进油管 |
| 47 | VG1099089098 | Hose | 燃油管 |
| 48 | VG1099089099 | Hose | 燃油管 |
| 49 | 90003962621 | Bolt | 空心螺栓A8 M14×1.5 |
| 50 | VG2600080200 |
