| NO. | Part No. | Chinese Name | Part Name |

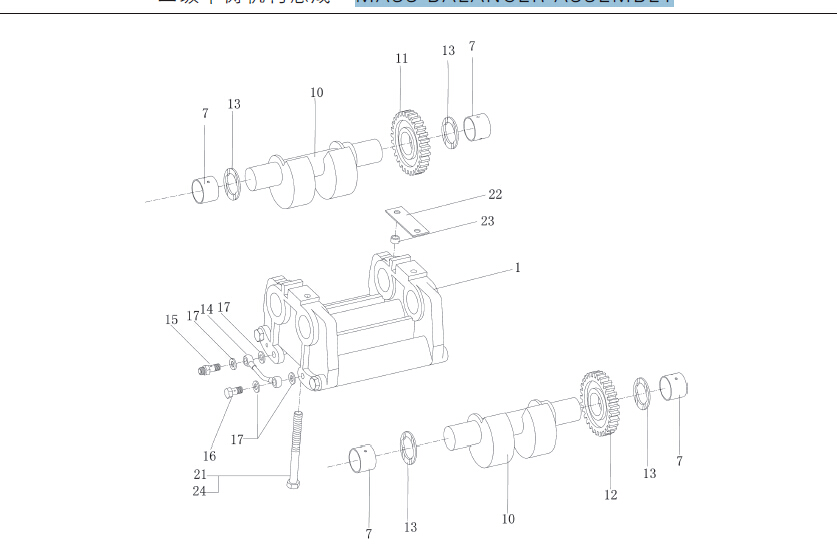

| 12200346 | 二级平衡机构壳体组件 | MASS BALANCER ASSEMBLY | |
| 13031233 | 轴承衬套 | LINING | |
| 12200348 | 带驱动齿轮的轴 | SHAFT | |
| 12200349 | 带从动齿轮的轴 | SHAFT | |
| 11 | 12200351 | 驱动齿轮 | DRIVING GEAR |
| 12 | 12200352 | 从动齿轮 | DRIVEN GEAR |
| 13 | 12200353 | 平衡止推片 | THRUST PIECES |
| 14 | 12158826 | 润滑油管 | LUBRICAT OIL LINE |
| 15 | 13031234 | 接头 | TIE-IN |
| 16 | 1153236 | 空心螺栓 | HOLLOW SCREW |
| 17 | 1118664 | 密封垫圈 | SEALING RING |
| 21 | 1151514 | 六角头螺栓 | HEXAGON BOLT |
| 22 | 12160137 | 调整垫片 | SHIM |
| 23 | 12159449 | 定位套 | LOCALIZER |
| 24 | 13021979 | 六角头螺栓 | HEXAGON BOLT |
