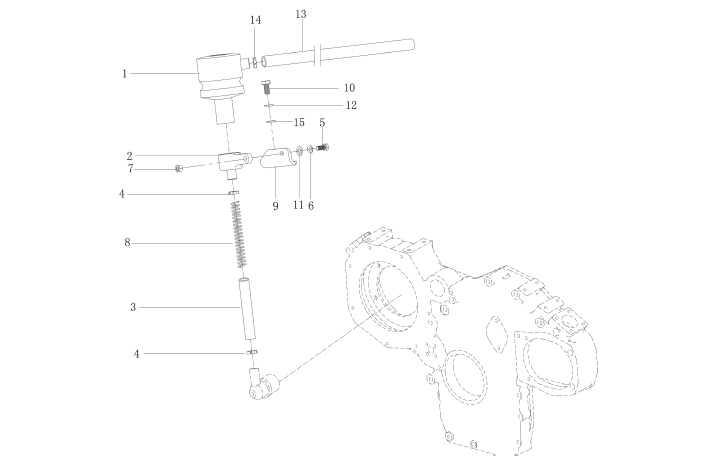

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 12270387 | 油气分离器 | OIL SEPARATOR |
| 12273086 | 油气分离器 | OIL SEPARATOR | |
| 2 | 12270388 | 通风装置接头 | ADAPTER |
| 3 | 13031741 | 软管 | HOSE |
| 13031744 | 软管 | HOSE | |
| 13031743 | 软管 | HOSE | |
| 13031742 | 软管 | HOSE | |
| 4 | 1137412 | 软管卡箍 | HOSE CLIP |
| 5 | 1112339 | 六角头螺栓 | HEXAGON BOLT |
| 6 | 1177981 | 弹簧垫圈 | SPRING LOCK WASHER |
| 7 | 1112829 | 六角螺母 | HEXAGON NUT |
| 8 | 12270389 | 弹簧 | COMPRESSION SPRING |
| 9 | 13024068 | 支架 | BRACKET |
| 13031831 | 支架 | BRACKET | |
| 13028982 | 支架 | BRACKET | |
| 13022101 | 支架 | BRACKET | |
| 10 | 13022007 | 六角头螺栓 | HEXAGON BOLT |
| 1112405 | 六角头螺栓 | HEXAGON BOLT | |
| 11 | 1132562 | 平垫圈 | PLAIN WASHER |
| 12 | 1152752 | 平垫圈 | PLAIN WASHER |
| 1151002 | 平垫圈 | PLAIN WASHER | |
| 13 | 13022800 | 橡胶管 | HOSE |
| 1396634 | 橡胶管 | HOSE | |
| 13022806 | 橡胶管 | HOSE | |
| 14 | 1177986 | 软管卡箍 | HOSECLIP |
| 15 | 1178366 | 弹簧垫圈 | SPRING LOCK WASHER |
