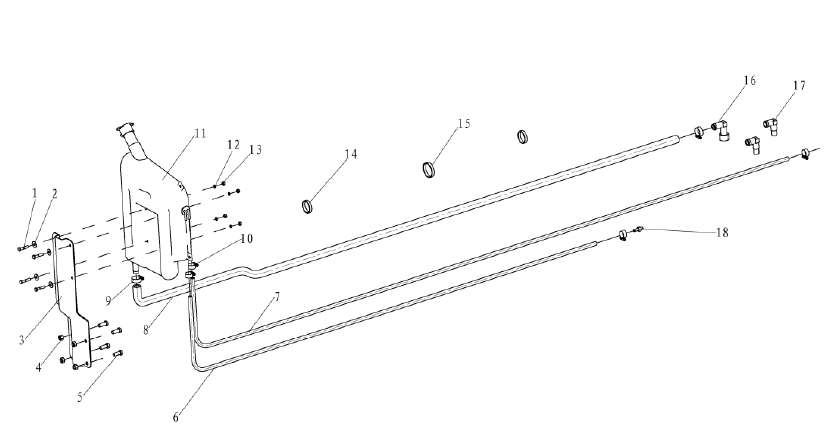

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
Q150B0840 |
六角头螺栓 |
Hex screw |
|
2 |
Q40208 |
大垫圈 |
Washer |
|
3 |
DZ9114530361 |
膨胀箱支架 |
Expansion box
bracket |
|
DZ9114530362 |
膨胀箱支架 |
Expansion box
bracket |
|
|
4 |
Q33212 |
2 型全金属六角锁紧螺母 |
Hex nut |
|
5 |
Q150B1230TF2 |
六角头螺栓 |
Hex screw |
|
6 |
1.99E+11 |
橡胶软管 |
Hose |
|
7 |
1.99E+11 |
橡胶软管 |
Hose |
|
8 |
DZ9112530411 |
橡胶软管 |
Hose |
|
9 |
Q67632 |
B 型蜗杆传动式软管环箍 |
Clip |
|
10 |
Q67627 |
B 型蜗杆传动式软管环箍 |
Clip |
|
11 |
DZ9114530260 |
膨胀箱总成 |
Expansion box
assembly |
|
12 |
Q40308 |
弹簧垫圈 |
Spring washer |
|
13 |
Q340B08 |
1 型六角螺母 |
Hex nut |
|
14 |
1.90E+11 |
塑料紧箍带 |
Plastic
fastening strap |
|
15 |
1.90E+11 |
塑料紧箍带 |
Plastic
fastening strap |
|
16 |
DZ9112530260 |
膨胀箱回水接头 |
Tie-in |
|
17 |
DZ9112530260 |
暖风回水接头 |
Tie-in |
|
18 |
2300-1303016 |
直通接头 |
Tie-in |
