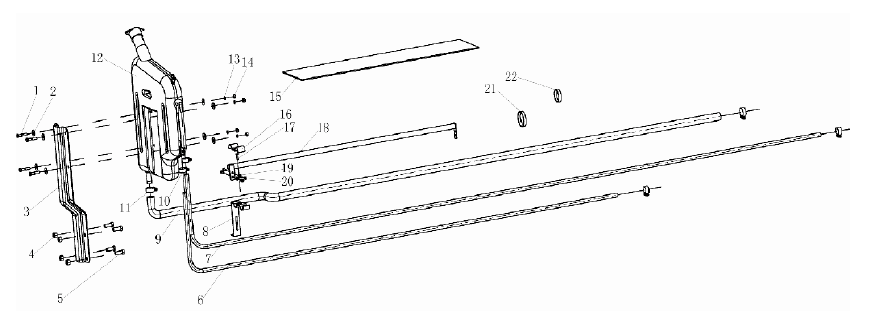

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
Q150B0840 |
六角头螺栓 |
Hex screw |
|
2 |
Q40208 |
大垫圈 |
Washer |
|
3 |
DZ9114530361 |
膨胀箱支架 |
Expansion box bracket |
|
|
DZ9114530362 |
膨胀箱支架 |
Expansion box bracket |
|
4 |
Q33212 |
2 型全金属六角锁紧螺母 |
Hex nut |
|
5 |
Q150B1230TF2 |
六角头螺栓 |
Hex screw |
|
6 |
1.99101E+11 |
橡胶软管 |
Hose |
|
7 |
1.99115E+11 |
橡胶软管 |
Hose |
|
8 |
DZ13241841502 |
支架总成（一） |
Bracket assembly |
|
9 |
1.16101E+11 |
橡胶软管 |
Hose |
|
10 |
Q67627 |
B 型蜗杆传动式软管环箍 |
Clip |
|
11 |
Q67632 |
B 型蜗杆传动式软管环箍 |
Clip |
|
12 |
DZ9114530260 |
膨胀箱总成 |
Expansion box assembly |
|
13 |
Q40308 |
弹簧垫圈 |
Spring washer |
|
14 |
Q340B08 |
1 型六角螺母 |
Hex nut |
|
15 |
DZ9112360041 |
管束隔热护套 |
Protecting jacket |
|
16 |
DZ13241841501 |
管夹 |
Tube clip |
|
17 |
Q150B0620 |
六角头螺栓 |
Hex screw |
|
18 |
DZ95259534004 |
钢管支架总成 |
Bracket assembly |
|
19 |
Q40106 |
平垫圈 |
Washer |
|
20 |
Q33206 |
2 型全金属六角锁紧螺母 |
Hex nut |
|
21 |
1.90003E+11 |
塑料紧箍带 |
Plastic fastening strap |
|
22 |
1.90003E+11 |
塑料紧箍带 |
Plastic fastening strap |
