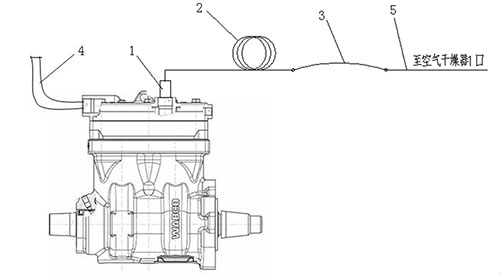

| NO | Part NO. | Quantity | Part Name | 名 称 |
| 1 | 199112360189 | 1 | Through joint body (M26 / M22) | 直通接头体（M26/M22） |
| 2 | AZ9918360202 | 1 | 15 air compressor/bellows tube | 管子15 空压机/波纹管 |
| 3 | WG9100360183 | 1 | Stainless steel corrugated pipe assembly (300 mm) | 不锈钢波纹管总成(300mm) |
| 4 | WG9918360101 | 1 | Rubber hose (950 mm) long | 橡胶软管(长950mm) |
| 5 | AZ9918360217 | 1 | 15 corrugated pipe/tube drye | 管子15波纹管/干燥器 |
| Other pipe fittings | ||||
| 190003989340 | 2 | The hose clamp | 软管卡箍 | |
| 190003559515 | 4 | Pipe joint with docking nut | 管接头用对接螺母 | |
| 190003559562 | 4 | Card set | 卡套 | |
| 190003098031 | 1 | Sealing washer | 密封垫圈 | |
| AZ9100362001 | 1 | Through joint of cutting sleeve type has the body | 卡套式直通接头体 | |
| WG9000361016 | 1 | Support gasket M22X1. 5 | 支撑垫圈M22X1.5 | |
| WG9000361017 | 1 | 20.3 X2.4 o-rings | O型圈20.3X2.4 | |
| WG9918360500 | 1 | Spiral tube fixed bracket | 螺旋管固定支架 | |
| 1188 730187 | 2 | Pipe clamp | 管夹 | |
| AZ9925360818 | 3 | Angle brackets (3 holes) | 角形支架(三孔) | |
| WG9000365408 | 3 | Single pipe clamp | 单管夹子 | |
| 161000060211 | 3 | 15/21 rubber hose | 橡胶软管 15/21 | |
| Q150B1030 | 3 | Hexagon head bolts | 六角头螺栓 | |
| Q340B10 | 3 | Type I hexagonal nut | I型六角螺母 | |
| Q40110 | 3 | Flat washer | 平垫圈 | |
| Q40310 | 3 | Spring washer | 弹簧垫圈 | |
| Q150B0635 | 2 | Hexagon head bolts | 六角头螺栓 | |
| Q150B0620 | 3 | Hexagon head bolts | 六角头螺栓 | |
| Q340B06 | 5 | Type I hexagonal nut | I型六角螺母 | |
| Q40106 | 5 | Flat washer | 平垫圈 | |
| Q40306 | 5 | Spring washer | 弹簧垫圈 | |
